Reference: 4-5KRL

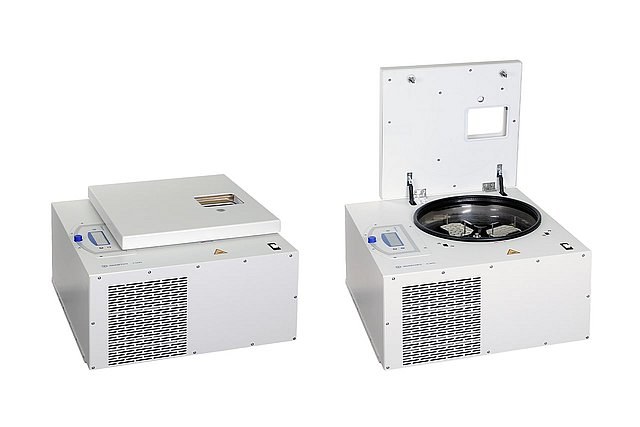

Sigma 4-5KRL Refrigerated Centrifuge for Laboratory Automation
Refrigerated robot-loadable centrifuge for total lab automation, with patented bucket levelling, lid opening in under 2 s, 8 s rotor indexing and an RS 232 interface.
Key specifications
- Max. capacity, swing-out rotor
- 140 blood collection tubes / 16 microtiter plates
- Max. RCF
- 4,470 x g
- Max. speed
- 4,700 rpm
- Min. speed
- 100 rpm
- Configured to your application by our specialists
- Installed and commissioned on site
- Training and after-sales support across Jordan, the GCC and MENA
Sigma 4-5KRL Refrigerated Centrifuge for Laboratory Automation
Request a quoteOverview
Product overview
The Sigma 4-5KRL is designed for integration into laboratory automation systems. It is built for robot loading and unloading and for control through the integrated serial interface, and suits high volumes of clinical IVD specimen tubes as well as microtiter plates and custom tubes and flasks.

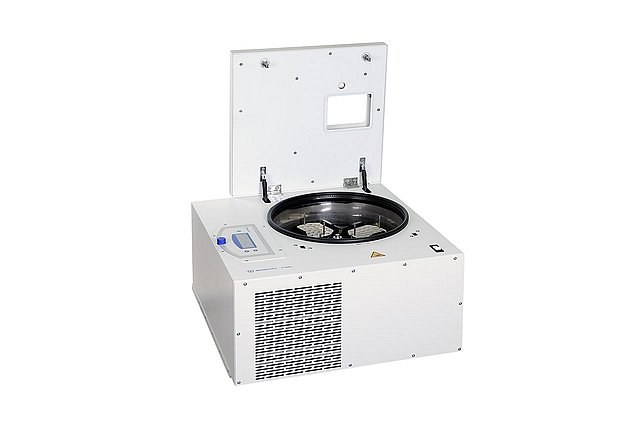

A patented bucket lifting device levels the buckets so that after every run they return to a reproducible horizontal and vertical position at the loading point. Lid opening and closing takes under 2 seconds and rotor indexing 8 seconds, which Sigma says shortens downtime and raises throughput.

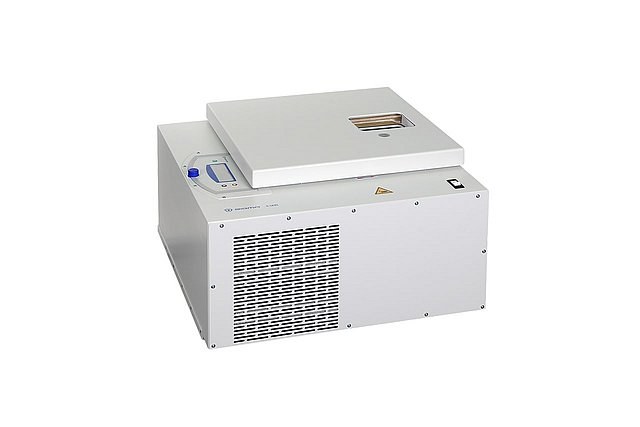

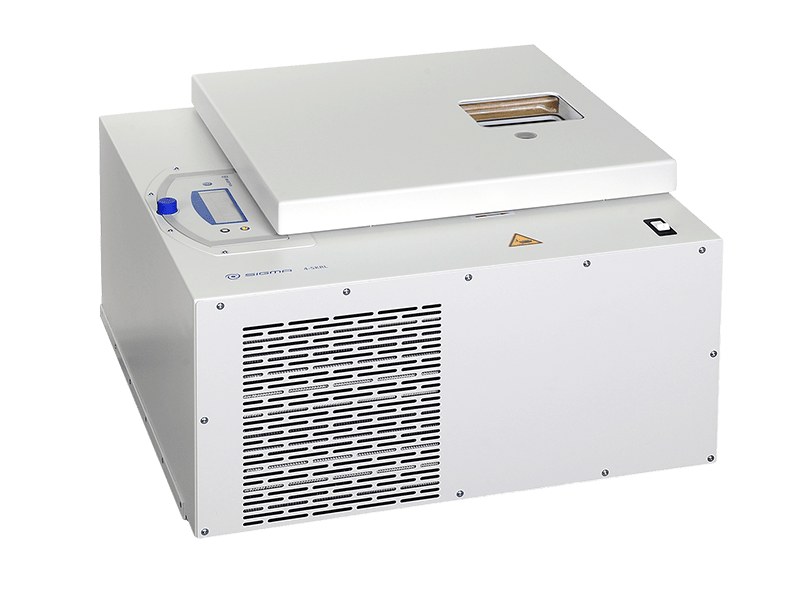

The low-profile lid lets the unit sit directly beneath the work platform, minimising the robot Z axis length. Acceleration and braking times are 23 and 24 seconds, respectively. Variants with or without bucket levelling and an RS 232 interface are offered.
Specifications
Technical specifications
15 parameters
Capacity
- Max. capacity, swing-out rotor
- 140 blood collection tubes / 16 microtiter plates
Performance
- Max. RCF
- 4,470 x g
- Max. speed
- 4,700 rpm
- Min. speed
- 100 rpm
- Max. speed / RCF, swing-out rotor
- 4,700 rpm / 4,470 x g
- Noise level at max. speed (swing-out rotor 91318 + bucket 91319)
- ≤ 59 dB(A)
- Max. acceleration time (swing-out rotor 91318 + bucket 91319)
- ≤ 23 s
- Max. braking time (swing-out rotor 91318 + bucket 91319)
- ≤ 24 s
Electrical
- Power consumption
- 2,200 W
Dimensions & Weight
- Height x Width x Depth
- 406 x 677 x 680 mm
- Height with open lid
- 890 mm
- Weight without rotor
- 135 kg
Refrigeration
- Refrigerant
- R513A
- Refrigerant charge / pressure
- 0.525 / 23 kg / bar
- CO2 equivalent
- 0.331 t
Features
Key features
- 01
Robot-ready
Designed for automated loading and unloading with serial-interface control.
- 02
Bucket levelling
Patented lifting device returns buckets to a reproducible position.
- 03
Fast handling
Lid opens/closes in under 2 s; rotor indexing takes 8 s.
- 04
Low-profile lid
Can be mounted directly beneath the work platform.
- 05
Capacity
Up to 140 blood collection tubes or 16 microtiter plates.
