Reference: 4-5L

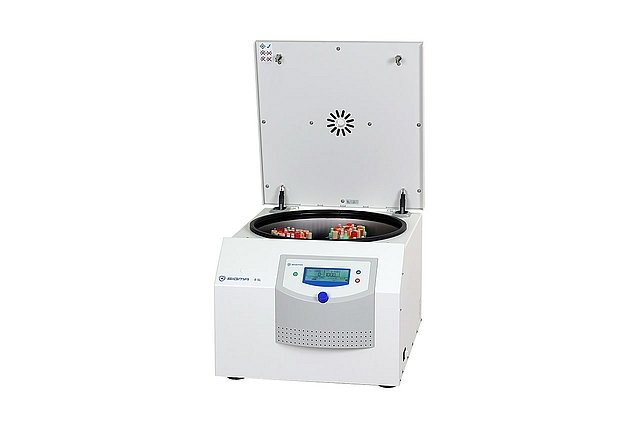

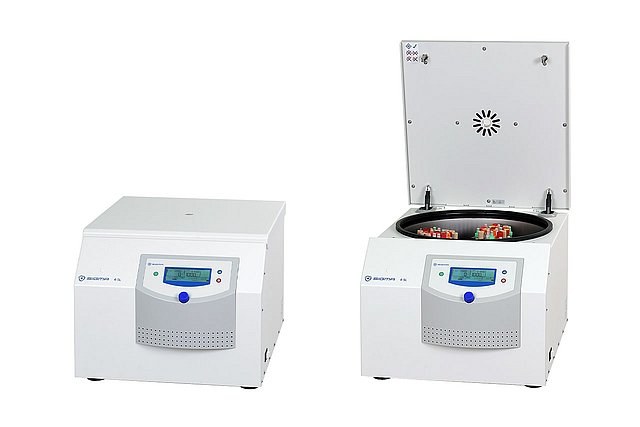

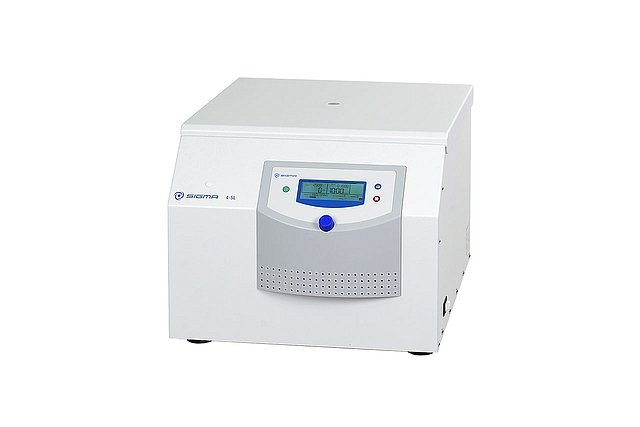

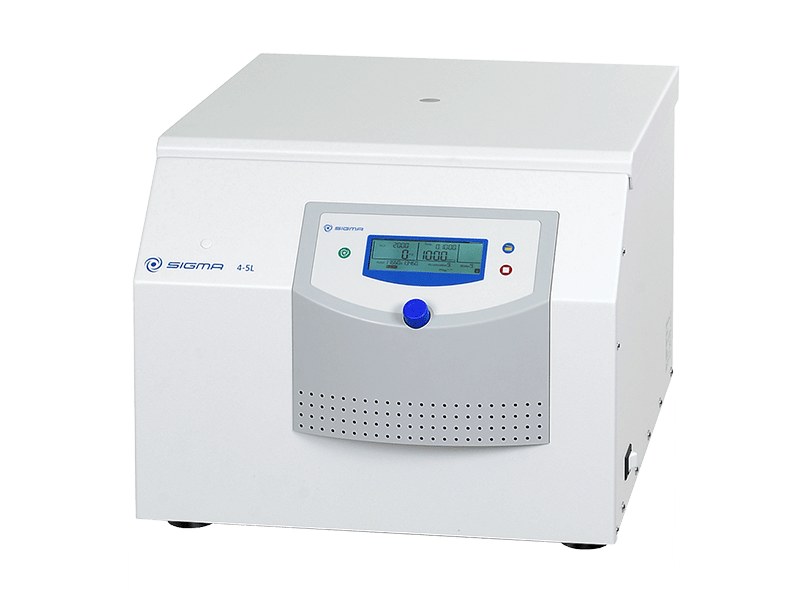

Sigma 4-5L Benchtop Centrifuge
Unrefrigerated benchtop all-rounder for throughput and capacity: up to 4 x 750 ml, 4,643 x g, 50 stored protocols and large blood-collection-tube capacity.
Key specifications
- Max. capacity, swing-out rotor
- 4 x 750 ml
- Max. RCF
- 4,643 x g
- Max. speed
- 4,700 rpm
- Min. speed
- 100 rpm
- Configured to your application by our specialists
- Installed and commissioned on site
- Training and after-sales support across Jordan, the GCC and MENA
Sigma 4-5L Benchtop Centrifuge
Request a quoteOverview
Product overview
The Sigma 4-5L is a high-torque benchtop centrifuge built for throughput and capacity, with short acceleration times, a low noise level and an extensive accessory range. It is recommended for clinical diagnostics and life-science applications, and up to 50 routine protocols can be stored.
Optimised air handling keeps specimen heating low and running quiet; the IVD model additionally has a sensor that monitors the specimen limit temperature. Accessories cover tubes and flasks from 1.5 to 750 ml and buckets for microtiter and deepwell plates, and RCF up to 4,643 x g also suits gel tubes.
Sigma states a capacity of up to 144 blood collection tubes of 13 mm diameter or 100 tubes of 16 mm diameter per run, which it describes as up to 25% more than comparable units. Refrigerated (4-5KL) and IVD versions are available, plus biosafe rotors, clinic and cell culture packages and an RS 232 interface.
Specifications
Technical specifications
12 parameters
Capacity
- Max. capacity, swing-out rotor
- 4 x 750 ml
Performance
- Max. RCF
- 4,643 x g
- Max. speed
- 4,700 rpm
- Min. speed
- 100 rpm
- Max. speed / RCF, swing-out rotor
- 4,700 rpm / 4,643 x g
- Noise level at max. speed (swing-out rotor 11660 + bucket 13460 + Cover)
- ≤ 66 dB(A)
- Max. acceleration time (swing-out rotor 11660 + bucket 13460 + Cover)
- ≤ 23 s
- Max. braking time (swing-out rotor 11660 + bucket 13460 + Cover)
- ≤ 20 s
Electrical
- Power consumption
- 1,230 W
Dimensions & Weight
- Height x Width x Depth
- 390 x 496 x 634 mm
- Height with open lid
- 880 mm
- Weight without rotor
- 77 kg
Features
Key features
- 01
High capacity
4 x 750 ml; up to 144 blood collection tubes (13 mm) or 100 (16 mm).
- 02
Low specimen heating
Optimised air handling with quiet running.
- 03
Program memory
Up to 50 routine protocols.
- 04
IVD temperature sensor
IVD model monitors the specimen limit temperature.
- 05
Options
Biosafe swing-out rotors, clinic and cell culture packages, RS 232.
