Reference: 6-16HS
Sigma 6-16HS Heated Benchtop Centrifuge
Heated high-capacity benchtop centrifuge (0 to +70 °C) with RCF up to 21,917 x g, optimised for ASTM D91/96 moisture-content measurement of crude-oil products.
Key specifications
- Max. capacity, swing-out rotor
- 4 x 1,000 ml
- Max. capacity, fixed-angle rotor
- 6 x 500 ml
- Max. RCF
- 21,917 x g
- Max. speed
- 13,500 rpm
- Configured to your application by our specialists
- Installed and commissioned on site
- Training and after-sales support across Jordan, the GCC and MENA
Sigma 6-16HS Heated Benchtop Centrifuge
Request a quoteOverview
Product overview

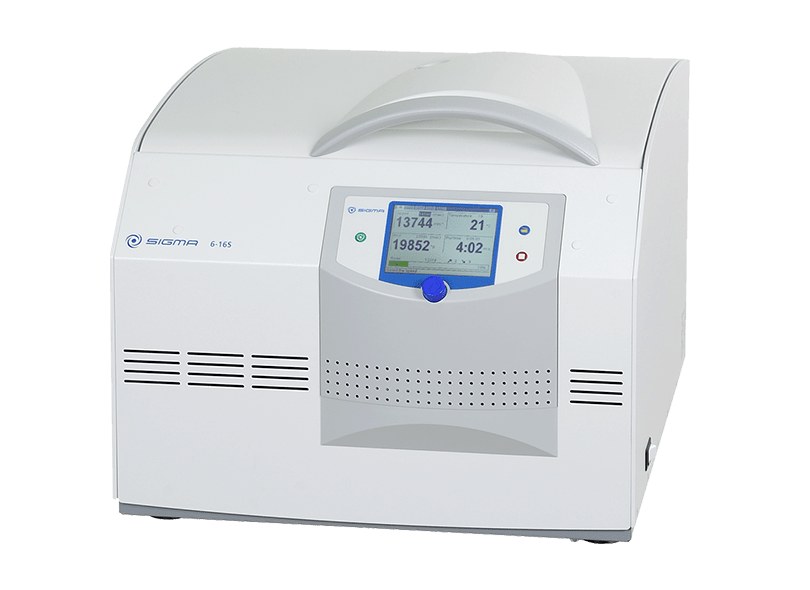

The Sigma 6-16HS is the heated member of the 6-16 series, combining benchtop compactness with floor-standing performance. It serves routine and research applications with high throughput in fixed-angle and swing-out rotors, up to 4 x 1,000 ml or 6 x 500 ml.
Its chamber has a precisely adjustable temperature range of 0 to +70 °C, and it is specifically optimised for measuring the moisture content of crude oil and crude-oil products in accordance with ASTM D91/96. A configuration for ASTM applications at +70 °C is available as an option.
Twelve fixed-angle rotors and six swing-out rotors are offered with numerous buckets and adapters. The patented Spincontrol S one-knob controller provides 60 programs, 30 acceleration/braking profiles, password-protected user settings and a distance-visible progress display. An RS 232 interface and biosafe rotors are also options.
Specifications
Technical specifications
17 parameters
Capacity
- Max. capacity, swing-out rotor
- 4 x 1,000 ml
- Max. capacity, fixed-angle rotor
- 6 x 500 ml
Performance
- Max. RCF
- 21,917 x g
- Max. speed
- 13,500 rpm
- Min. speed
- 100 rpm
- Max. speed / RCF, swing-out rotor
- 5,700 rpm / 5,485 x g
- Max. speed / RCF, fixed-angle rotor
- 13,500 rpm / 21,917 x g
- Noise level at max. speed (fixed-angle rotor 12449)
- ≤ 63 dB(A)
- Noise level at max. speed (swing-out rotor 11660 + bucket 13450)
- ≤ 71 dB(A)
- Max. acceleration time (fixed-angle rotor 12449)
- ≤ 26 s
- Max. acceleration time (swing-out rotor 11660 + bucket 13450)
- ≤ 29 s
- Max. braking time (fixed-angle rotor 12449)
- ≤ 40 s
- Max. braking time (swing-out rotor 11660 + bucket 13450)
- ≤ 28 s
Temperature
- Temperature setting range
- 0 to +70 °C
Dimensions & Weight
- Height x Width x Depth
- 483 x 581 x 711 mm
- Height with open lid
- 990 mm
- Weight without rotor
- 116 kg
Features
Key features
- 01
Heated chamber
Adjustable from 0 to +70 °C.
- 02
ASTM focus
Optimised for ASTM D91/96 moisture measurement of crude oil and products.
- 03
High capacity
4 x 1,000 ml swing-out or 6 x 500 ml fixed-angle.
- 04
Spincontrol S
60 programs and 30 acceleration/braking profiles with password protection.
- 05
Options
ASTM configuration at +70 °C, biosafe rotors, RS 232.
From order to operation
We stay with the instrument after it arrives
Al-Shaker specifies the configuration, documents the system, and supports it across Jordan, the GCC, and MENA.
- 01
Consult
- 02
Plan
- 03
Supply
- 04
Install
- 05
Train
- 06
Support
