Reference: 6-16KS

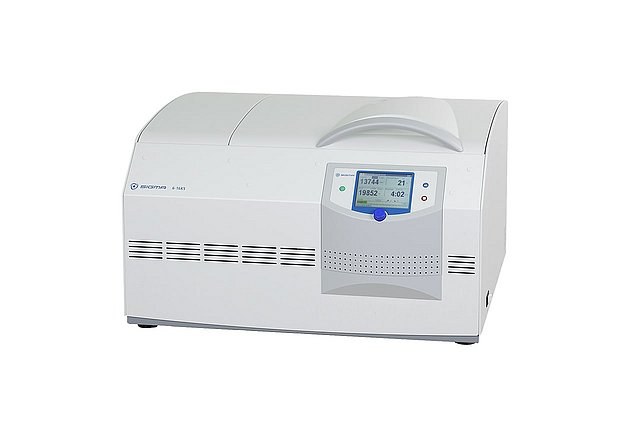

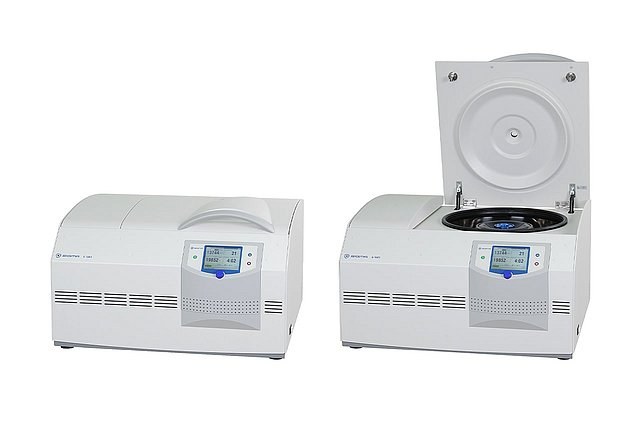

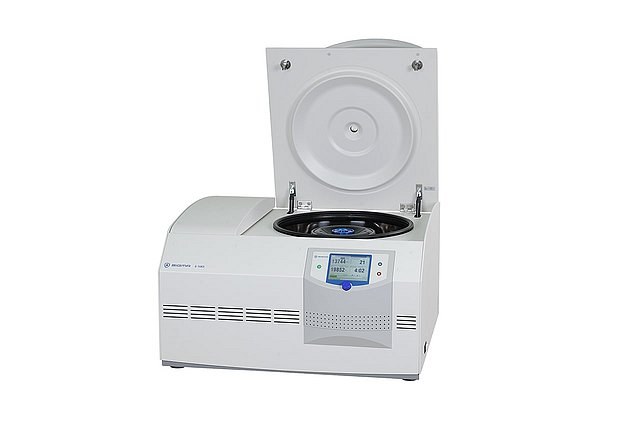

Sigma 6-16KS Refrigerated Benchtop Centrifuge
Refrigerated benchtop centrifuge with floor-standing-class capacity (4 x 1,000 ml or 6 x 500 ml), up to 25,419 x g, Spincontrol S control and optional GMP water-cooled model.
Key specifications
- Max. capacity, swing-out rotor
- 4 x 1,000 ml
- Max. capacity, fixed-angle rotor
- 6 x 500 ml
- Max. RCF
- 25,419 x g
- Max. speed
- 15,000 rpm
- Configured to your application by our specialists
- Installed and commissioned on site
- Training and after-sales support across Jordan, the GCC and MENA
Sigma 6-16KS Refrigerated Benchtop Centrifuge
Request a quoteOverview
Product overview
The Sigma 6-16KS offers benchtop compactness with the performance of a floor-standing centrifuge. It reaches 25,419 x g at 15,000 rpm and serves routine and research work with high throughput in fixed-angle and swing-out rotors.
It processes blood pouches, petroleum flasks, microtiter and deepwell plates and tubes and flasks from 0.2 to 1,000 ml, and is used in microbiology, molecular biology, pharmaceutics, genomics, clinical diagnostics, bioproduction, cell culture and transfusion facilities. Twelve fixed-angle and six swing-out rotors are offered with many biosafe configurations.
The patented Spincontrol S controller provides 60 programs, 30 acceleration/braking profiles, password-protected user settings and a large program status display with a progress bar. Options include an inert gas port, a GMP model with water cooling, clinic and cell culture packages, an RS 232 interface and the DataSuite documentation system.
Specifications
Technical specifications
20 parameters
Capacity
- Max. capacity, swing-out rotor
- 4 x 1,000 ml
- Max. capacity, fixed-angle rotor
- 6 x 500 ml
Performance
- Max. RCF
- 25,419 x g
- Max. speed
- 15,000 rpm
- Min. speed
- 100 rpm
- Max. speed / RCF, swing-out rotor
- 5,700 rpm / 5,485 x g
- Max. speed / RCF, fixed-angle rotor
- 15,000 rpm / 25,419 x g
- Noise level at max. speed (fixed-angle rotor 12449)
- ≤ 66 dB(A)
- Noise level at max. speed (swing-out rotor 11660 + bucket 13450)
- ≤ 57 dB(A)
- Max. acceleration time (fixed-angle rotor 12449)
- ≤ 28 s
- Max. acceleration time (swing-out rotor 11660 + bucket 13450)
- ≤ 34 s
- Max. braking time (fixed-angle rotor 12449)
- ≤ 43 s
- Max. braking time (swing-out rotor 11660 + bucket 13450)
- ≤ 34 s
Electrical
- Power consumption
- 2,000 W
Dimensions & Weight
- Height x Width x Depth
- 483 x 581 x 711 mm
- Height with open lid
- 990 mm
- Weight without rotor
- 158 kg
Refrigeration
- Refrigerant
- R452A
- Refrigerant charge / pressure
- 0.590 / 25 kg / bar
- CO2 equivalent
- 1.263 t
Features
Key features
- 01
High capacity
4 x 1,000 ml swing-out or 6 x 500 ml fixed-angle.
- 02
High RCF
Up to 25,419 x g at 15,000 rpm.
- 03
Spincontrol S
60 programs, 30 acceleration/braking profiles, password-protected settings.
- 04
Rotor range
Twelve fixed-angle and six swing-out rotors.
- 05
Options
GMP water-cooled model, inert gas port, DataSuite, RS 232.
From order to operation
We stay with the instrument after it arrives
Al-Shaker specifies the configuration, documents the system, and supports it across Jordan, the GCC, and MENA.
- 01
Consult
- 02
Plan
- 03
Supply
- 04
Install
- 05
Train
- 06
Support
