Reference: 6-16S

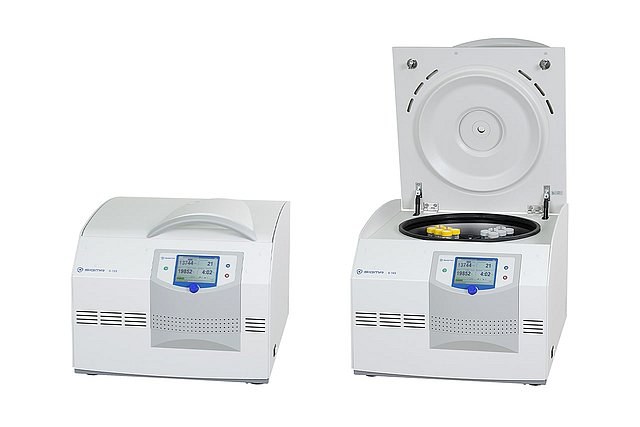

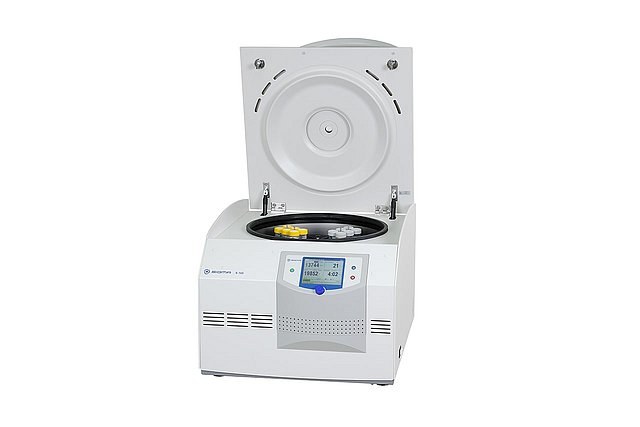

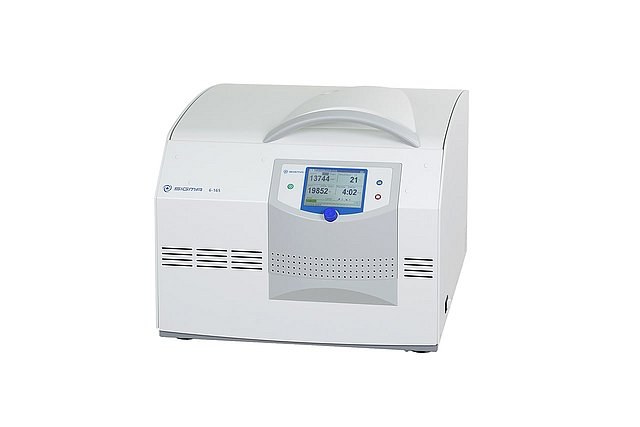

Sigma 6-16S Benchtop Centrifuge
Unrefrigerated high-capacity benchtop centrifuge with 4 x 1,000 ml swing-out or 6 x 500 ml fixed-angle capacity, 21,917 x g and a one-knob Spincontrol S controller.
Key specifications
- Max. capacity, swing-out rotor
- 4 x 1,000 ml
- Max. capacity, fixed-angle rotor
- 6 x 500 ml
- Max. RCF
- 21,917 x g
- Max. speed
- 13,500 rpm
- Configured to your application by our specialists
- Installed and commissioned on site
- Training and after-sales support across Jordan, the GCC and MENA
Sigma 6-16S Benchtop Centrifuge
Request a quoteOverview
Product overview
Sigma describes the 6-16S as combining the compactness of a benchtop unit with the performance of a floor-standing centrifuge. This all-purpose model fits routine and research work, with high throughput in fixed-angle and swing-out rotors and RCF values up to 21,917 x g at 13,500 rpm.
It handles blood pouches, petroleum flasks, microtiter and deepwell plates and tubes and flasks from 0.2 ml to 1,000 ml. Twelve fixed-angle and six swing-out rotors are available with numerous buckets and adapters, including many biosafe configurations. Typical areas are microbiology, molecular biology, pharmaceutics, genomics, clinical diagnostics, bioproduction, cell culture and transfusion facilities.
The patented Spincontrol S one-knob controller provides 60 programs, 30 acceleration/braking profiles, password-protected user settings and a large program status display with progress bar that is visible from a distance. Cell culture packages and an RS 232 interface are options.
Specifications
Technical specifications
16 parameters
Capacity
- Max. capacity, swing-out rotor
- 4 x 1,000 ml
- Max. capacity, fixed-angle rotor
- 6 x 500 ml
Performance
- Max. RCF
- 21,917 x g
- Max. speed
- 13,500 rpm
- Min. speed
- 100 rpm
- Max. speed / RCF, swing-out rotor
- 5,700 rpm / 5,485 x g
- Max. speed / RCF, fixed-angle rotor
- 13,500 rpm / 21,917 x g
- Noise level at max. speed (fixed-angle rotor 12449)
- ≤ 63 dB(A)
- Noise level at max. speed (swing-out rotor 11660 + bucket 13450)
- ≤ 71 dB(A)
- Max. acceleration time (fixed-angle rotor 12449)
- ≤ 26 s
- Max. acceleration time (swing-out rotor 11660 + bucket 13450)
- ≤ 29 s
- Max. braking time (fixed-angle rotor 12449)
- ≤ 40 s
- Max. braking time (swing-out rotor 11660 + bucket 13450)
- ≤ 28 s
Dimensions & Weight
- Height x Width x Depth
- 483 x 581 x 711 mm
- Height with open lid
- 990 mm
- Weight without rotor
- 116 kg
Features
Key features
- 01
High capacity
4 x 1,000 ml swing-out or 6 x 500 ml fixed-angle.
- 02
Rotor range
Twelve fixed-angle and six swing-out rotors with many buckets and adapters.
- 03
Spincontrol S
60 programs, 30 acceleration/braking profiles, password-protected settings.
- 04
Status display
Large program status display with progress bar.
- 05
Options
Biosafe rotors, cell culture packages, RS 232 interface.
