Reference: 6-5KRL
Sigma 6-5KRL Refrigerated Centrifuge for Laboratory Automation
Refrigerated centrifuge for total lab automation with a robot-operable sliding lid (3 s), 5 s rotor indexing, defined bucket positioning and an RS 232 interface.
Key specifications
- Max. capacity, swing-out rotor
- 140 blood collection tubes/ 16 micro titer plates
- Max. RCF
- 4,470 x g
- Max. speed
- 4,700 rpm
- Min. speed
- 100 rpm
- Configured to your application by our specialists
- Installed and commissioned on site
- Training and after-sales support across Jordan, the GCC and MENA
Sigma 6-5KRL Refrigerated Centrifuge for Laboratory Automation
Request a quoteOverview
Product overview

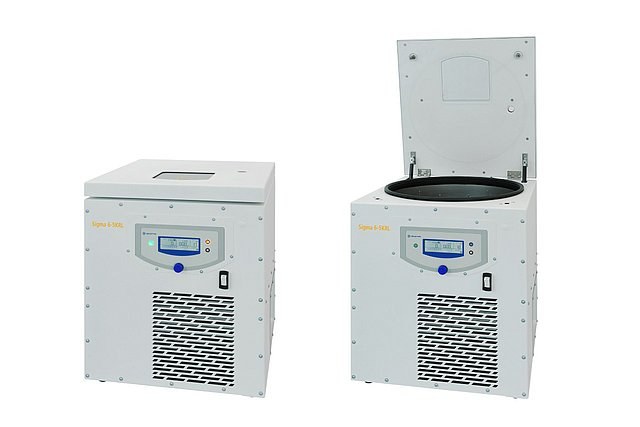

The Sigma 6-5KRL is built for total lab automation, processing clinical IVD specimens or life-science samples. It suits very high volumes of specimen tubes, and its compact construction, additional sliding lid, RS 232 connectivity and rotor positioning ease integration into automated workflows.
Remote control allows direct command of the centrifuge, including the sliding lid used for robot loading and unloading and the defined positioning of the bucket directly beneath the lid opening. The sliding lid opens and closes in 3 seconds and rotor indexing takes only 5 seconds.
A low-profile lid lets the unit be placed directly beneath the work platform to minimise the robot Z axis length. Acceleration and braking take up to 29 and 30 seconds respectively, and smooth running gives reproducible results. Capacity is up to 140 blood collection tubes or 16 microtiter plates.
Specifications
Technical specifications
15 parameters
Capacity
- Max. capacity, swing-out rotor
- 140 blood collection tubes/ 16 micro titer plates
Performance
- Max. RCF
- 4,470 x g
- Max. speed
- 4,700 rpm
- Min. speed
- 100 rpm
- Max. speed / RCF, swing-out rotor
- 4,700 rpm / 4,470 x g
- Noise level at max. speed (swing-out rotor 91318 + bucket 91319)
- ≤ 59 dB(A)
- Max. acceleration time (swing-out rotor 91318 + bucket 91319)
- ≤ 29 s
- Max. braking time (swing-out rotor 91318 + bucket 91319)
- ≤ 30 s
Electrical
- Power consumption
- 2,200 W
Dimensions & Weight
- Height x Width x Depth
- 650 x 530 x 602 mm
- Height with open lid
- 1175 mm
- Weight without rotor
- 144 kg
Refrigeration
- Refrigerant
- R452a
- Refrigerant charge / pressure
- 0.59 / 42 kg / bar
- CO2 equivalent
- 1.26 t
Features
Key features
- 01
Remote control
Direct control for integration into automated workflows via RS 232.
- 02

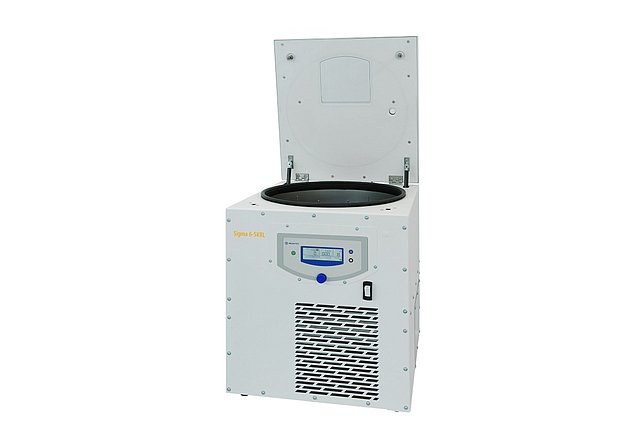

Sliding lid
Opens and closes in 3 s for robot loading and unloading.
- 03
Rotor positioning
Defined bucket position directly beneath the lid opening; 5 s indexing.
- 04

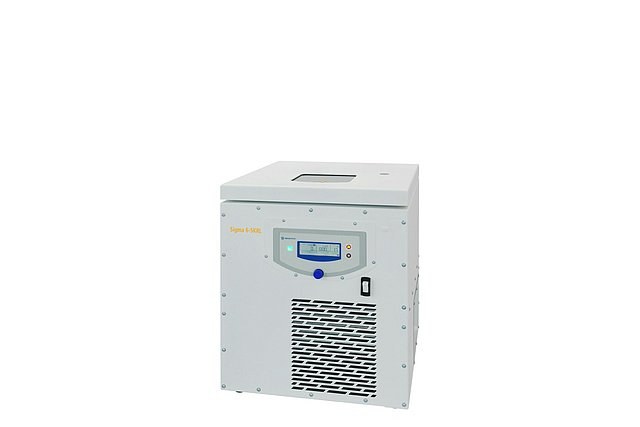

Low-profile design
Fits beneath the work platform to shorten the robot Z axis.
- 05
Capacity
Up to 140 blood collection tubes or 16 microtiter plates.
