Reference: 8KBS
Sigma 8KBS Refrigerated Blood Bank Floor-Standing Centrifuge
Refrigerated floor-standing centrifuge for blood-component separation, a medical device under EU Regulation 2017/745 Class IIa, with 12 blood-bag capacity and 5,394 x g.
Key specifications
- Max. capacity, swing-out rotor
- 12 blood bag systems
- Max. RCF
- 5,394 x g
- Max. speed
- 4,100 rpm
- Min. speed
- 100 rpm
- Configured to your application by our specialists
- Installed and commissioned on site
- Training and after-sales support across Jordan, the GCC and MENA
Sigma 8KBS Refrigerated Blood Bank Floor-Standing Centrifuge
Request a quoteOverview
Product overview

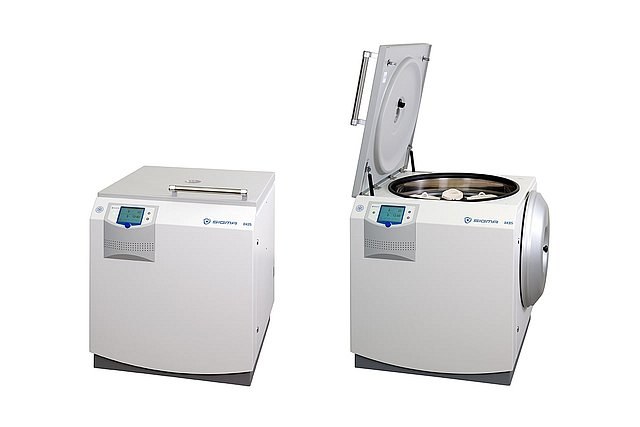

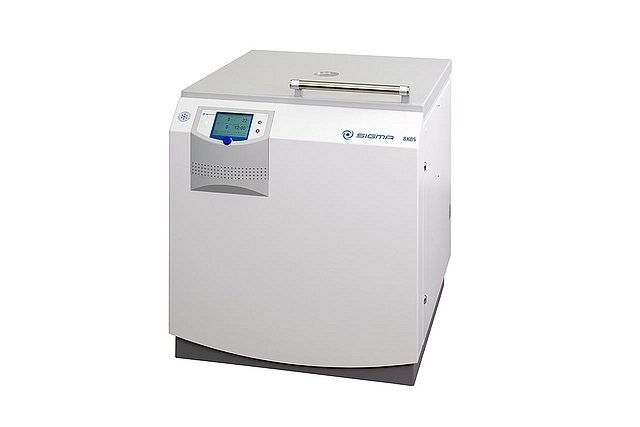

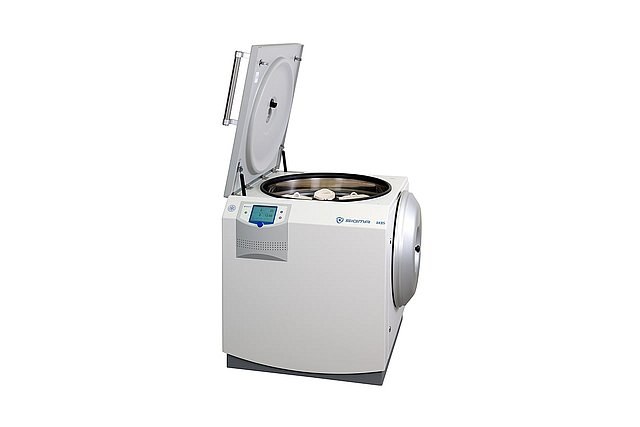

The Sigma 8KBS is a refrigerated floor-standing centrifuge classed as a medical device under Regulation (EU) 2017/745, Class IIa, for separating blood components in transfusion medicine. It was developed for blood banks and transfusion facilities and processes up to twelve blood bag systems per run.
Very smooth running delivers reproducible sedimentation. Maximum RCF is 5,394 x g at 4,100 rpm, and the patented Spincontrol S single-knob control and ergonomic lid opening support intensive daily use. The loading height is 88 cm, the footprint is among the most compact of its class, and the stated noise level is 54 dB(A).
The refrigeration system is precisely adjustable from -20 to +40 °C, and Rapid Temp pre-cools the chamber and accessories, which matters for pre-chilled blood pouches. Options include water cooling, an RS 232 interface for a barcode scanner and the DataSuite documentation system.
Specifications
Technical specifications
16 parameters
Capacity
- Max. capacity, swing-out rotor
- 12 blood bag systems
Performance
- Max. RCF
- 5,394 x g
- Max. speed
- 4,100 rpm
- Min. speed
- 100 rpm
- Max. speed / RCF, swing-out rotor
- 4,100 rpm / 5,394 x g
- Noise level at max. speed (swing-out rotor 11805 + bucket 13860)
- ≤ 57 dB(A)
- Max. acceleration time (swing-out rotor 11805 + bucket 13860)
- ≤ 49 s
- Max. braking time (swing-out rotor 11805 + bucket 13860)
- ≤ 87 s
Temperature
- Temperature setting range
- -20 to +40 °C
Electrical
- Power consumption
- 4,200 W
Dimensions & Weight
- Height x Width x Depth
- 990 x 820 x 949 mm
- Height with open lid
- 1,690 mm
- Weight without rotor
- 450 kg
Refrigeration
- Refrigerant
- R452A
- Refrigerant charge / pressure
- 2.280 / 28 kg / bar
- CO2 equivalent
- 4.879 t
Features
Key features
- 01
Medical device
Regulation (EU) 2017/745, Class IIa, for blood-component separation.
- 02
Capacity
Up to twelve blood bag systems per run.
- 03
Ergonomics
Loading height of only 88 cm and ergonomic lid opening.
- 04
Rapid Temp
Pre-cools chamber and accessories for chilled blood pouches.
- 05
Options
Water cooling, barcode-scanner RS 232 interface, DataSuite.
From order to operation
We stay with the instrument after it arrives
Al-Shaker specifies the configuration, documents the system, and supports it across Jordan, the GCC, and MENA.
