Reference: 525
Socorex Calibrex organo 525 bottle-top dispenser
Robust bottle-top dispenser for organic solvents with ground glass or ceramic plunger, 0.1 to 100 mL in seven models, optional stopcock.
Key specifications
- Volume ranges
- 0.1–1, 0.25–2.5, 0.5–5, 1–10, 2.5–25, 5–50 and 10–100 mL (7 models)
- Resolution (division)
- 0.02, 0.05, 0.1, 0.2, 0.5, 1.0 and 1.0 mL respectively
- Catalogue numbers (without stopcock)
- 525.001, 525.002.5, 525.005, 525.010, 525.025, 525.050, 525.100
- Catalogue numbers (with stopcock)
- Same codes with suffix FC
- Configured to your application by our specialists
- Installed and commissioned on site
- Training and after-sales support across Jordan, the GCC and MENA
Socorex Calibrex organo 525 bottle-top dispenser
Request a quoteOverview
Product overview

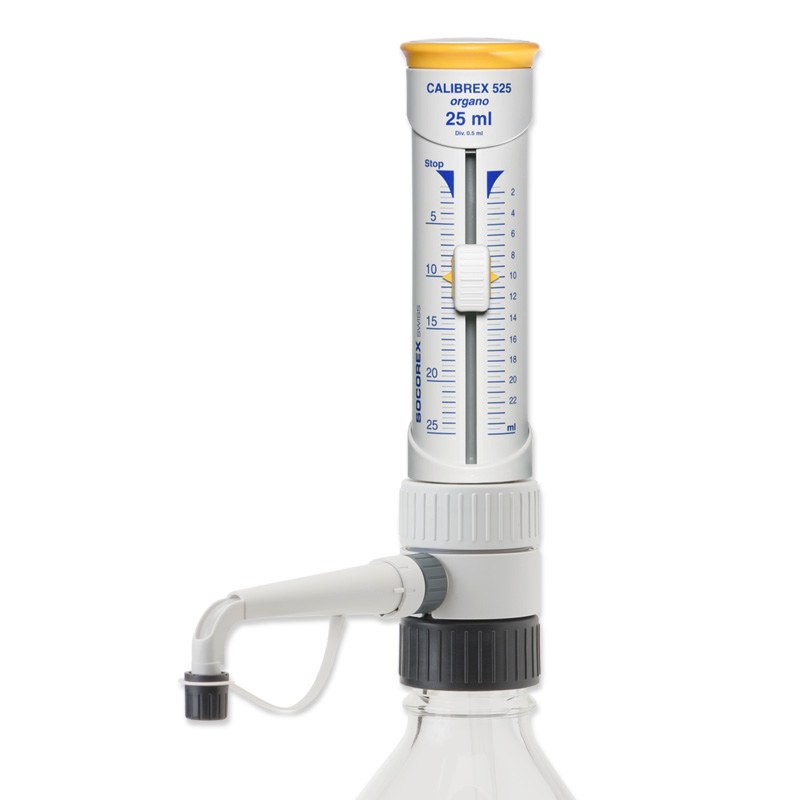

The Calibrex organo 525 is a bottle-top dispenser designed for organic solvents, using a ground glass or ceramic plunger that also suits non-crystallising acid and base solutions. Seven models cover 0.1 to 100 mL and fit most reagent bottles.
Volume is set with a sliding cursor along a dual scale, the body rotates 360° so the display is readable from any position, and the thick glass barrel sits inside a transparent protective sleeve. Calibration is done in the lab with an integrated key, and the instrument can be fitted with an optional stopcock flow-control system. For acids and bases, Socorex points to the solutae 530 version.
Specifications
Technical specifications
14 parameters
General
- Volume ranges
- 0.1–1, 0.25–2.5, 0.5–5, 1–10, 2.5–25, 5–50 and 10–100 mL (7 models)
- Resolution (division)
- 0.02, 0.05, 0.1, 0.2, 0.5, 1.0 and 1.0 mL respectively
- Catalogue numbers (without stopcock)
- 525.001, 525.002.5, 525.005, 525.010, 525.025, 525.050, 525.100
- Catalogue numbers (with stopcock)
- Same codes with suffix FC
- Plunger
- Ground glass or ceramic plunger
- Best suited for
- Organic solvents and non-crystallising acid and base solutions
- Bottle thread
- 45 mm base thread; supplied with feed tubing, delivery jet with stopper, bottle neck adapters, QC certificate
- Sterilisation
- Autoclavable fully assembled, 121 °C
- Warranty
- 2 years
Performance (ISO 8655, bidest. water, 20-25 °C)
- Accuracy, 0.1–1 mL
- Inaccuracy E% <±3.0 % / <±1.8 % / <±0.6 % (min / mid / max volume); Imprecision CV% <1.2 % / <0.7 % / <0.17 %
- Accuracy, 0.25–2.5 mL
- Inaccuracy E% <±2.7 % / <±1.6 % / <±0.6 % (min / mid / max volume); Imprecision CV% <0.9 % / <0.55 % / <0.17 %
- Accuracy, 0.5–5 mL
- Inaccuracy E% <±2.0 % / <±1.3 % / <±0.6 % (min / mid / max volume); Imprecision CV% <0.5 % / <0.35 % / <0.1 %
- Accuracy, 1–10 mL
- Inaccuracy E% <±1.5 % / <±1.2 % / <±0.6 % (min / mid / max volume); Imprecision CV% <0.5 % / <0.35 % / <0.1 %
- Accuracy, 2.5–25 mL, 5–50 mL, 10–100 mL
- Inaccuracy E% <±1.5 % / <±1.1 % / <±0.6 % (min / mid / max volume); Imprecision CV% <0.5 % / <0.35 % / <0.1 %
Features
Key features
- 01
Dual-scale volume setting
Wide-angle reading and a locking position for transport.
- 02
Transparent protective sleeve
Visual priming control and reduced spill risk if the barrel breaks.
- 03
Flexible delivery jet
Absorbs shocks to reduce breakage risk.
- 04
In-lab calibration
Integrated key under the plunger cap, sealed with a sticker.
- 05

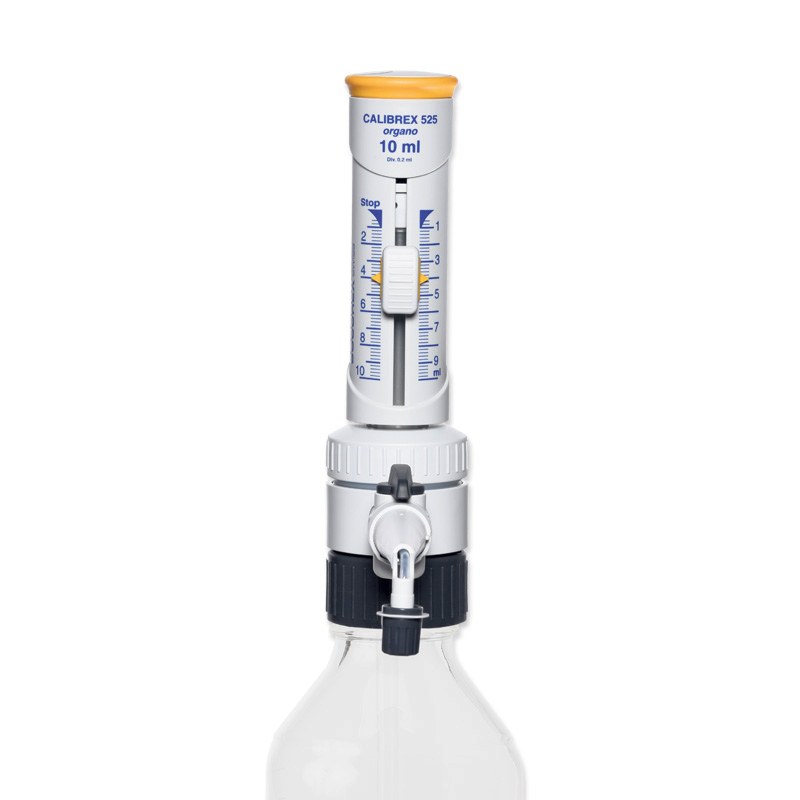

Optional stopcock
Flow control system available.
- 06
QR-coded compatibility
Link to the chemical resistance chart.
