Reference: 520

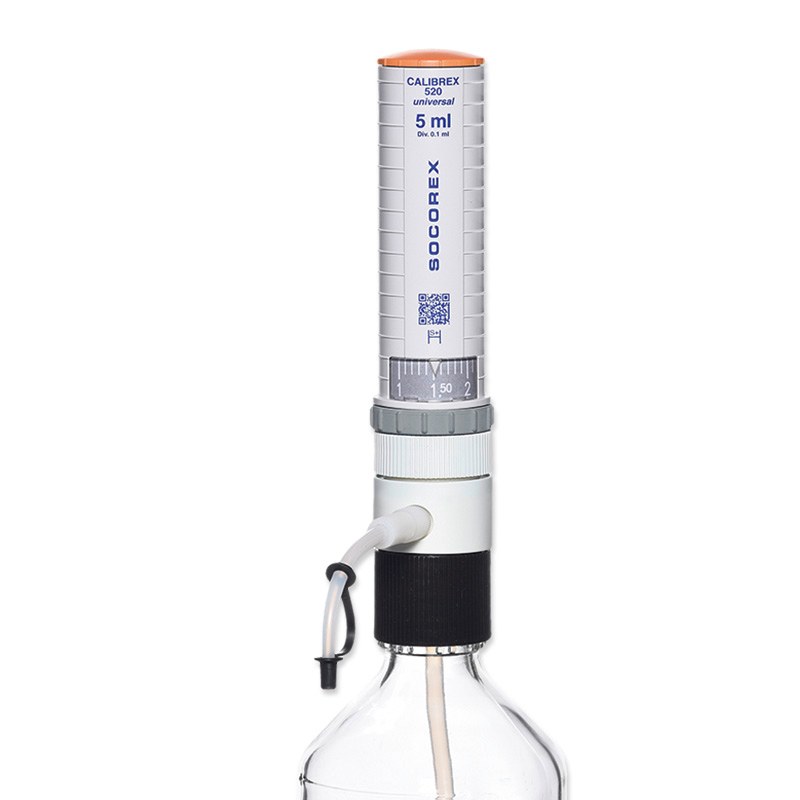

Socorex Calibrex universal 520 bottle-top dispenser
Bottle-top dispenser for 0.25 to 10 mL with PFA-coated plunger for broad chemical resistance, digital volume setting and in-lab calibration.
Key specifications
- Volume ranges
- 0.25–2 mL, 1–5 mL, 1–10 mL
- Resolution (division)
- 0.05, 0.1 and 0.25 mL respectively
- Catalogue numbers
- 520.002, 520.005, 520.010
- Plunger
- PFA coated, universal chemical resistance
- Configured to your application by our specialists
- Installed and commissioned on site
- Training and after-sales support across Jordan, the GCC and MENA
Socorex Calibrex universal 520 bottle-top dispenser
Request a quoteOverview
Product overview
The Calibrex universal 520 is a bottle-top dispenser for handling liquids from a wide variety of bottles and flasks, in three ranges from 0.25 to 10 mL. A PFA-coated plunger gives broad chemical resistance and long-lasting performance stability.
Volume is set by a ring with a large display window, adjustable even with a gloved hand, and each step corresponds to a pre-calibrated position on the cylindrical cam. The unit rotates 360° on the bottle, takes a membrane air filter if needed, and is recalibrated in the lab with an adjustment screw under the cap. A QR code links to the chemical compatibility chart.
Fixed-volume versions are listed separately.
Specifications
Technical specifications
10 parameters
General
- Volume ranges
- 0.25–2 mL, 1–5 mL, 1–10 mL
- Resolution (division)
- 0.05, 0.1 and 0.25 mL respectively
- Catalogue numbers
- 520.002, 520.005, 520.010
- Plunger
- PFA coated, universal chemical resistance
- Bottle thread
- Fits 32 mm neck; supplied with PP adapters for 28, 40 and 45 mm
- Sterilisation
- Autoclavable fully assembled, 121 °C / 250 °F
- Warranty
- 2 years
Performance (ISO 8655, bidest. water, 20-25 °C)
- Accuracy, 0.25–2 mL
- Inaccuracy E% <±3.0 % / <±1.8 % / <±0.6 %; Imprecision CV% <0.5 % / <0.35 % / <0.1 %
- Accuracy, 1–5 mL
- Inaccuracy E% <±2.0 % / <±1.3 % / <±0.6 %; Imprecision CV% <0.5 % / <0.35 % / <0.1 %
- Accuracy, 1–10 mL
- Inaccuracy E% <±1.5 % / <±1.1 % / <±0.6 %; Imprecision CV% <0.5 % / <0.35 % / <0.1 %
Features
Key features
- 01
Single-handed volume setting
- 02
Rotates 360°
Positions the dispenser on the bottle.
- 03
Air filter option
Air inlet can take a membrane filter.
- 04
In-lab calibration
Adjustment screw under the cap.
- 05
Tool-free maintenance
Valves, plunger, barrel and jet removed in seconds.
- 06
QR-coded compatibility
QR code links to the chemical resistance chart.
- 07
Fixed-volume option
Fixed versions available in any volume within each range.
