24 Position SPE Vacuum Manifold
High-throughput 24-port SPE vacuum manifold with individual stopcocks and a glass chamber, for processing large sample batches before chromatography.
Key specifications
- Positions
- 24
- Cartridge compatibility
- Standard SPE cartridges 1 mL to 15 mL, round and square formats
- Flow control
- Individual stopcock per port
- Vessel
- Transparent glass chamber with vacuum gauge and valve
- Configured to your application by our specialists
- Installed and commissioned on site
- Training and after-sales support across Jordan, the GCC and MENA
24 Position SPE Vacuum Manifold
Request a quoteOverview
Product overview

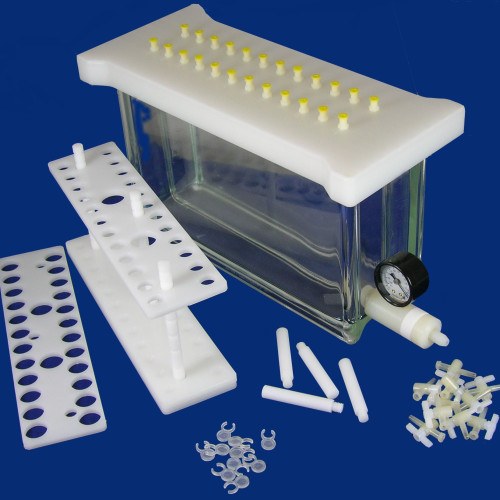

The Ashtech Science 24 position SPE vacuum manifold doubles the capacity of the 12-port model for laboratories that run large batches of solid phase extraction. All 24 cartridges are processed together, which cuts handling time and keeps conditions the same for every sample in a run.
As with the smaller unit, each port has an individual stopcock and the vacuum is spread evenly across the cover. The glass chamber is transparent, the construction is chemically resistant, and the manifold accepts standard 1-15 mL round or square SPE cartridges.
The complete set (82401) includes the chamber, cover with 24 stopcocks and a collection rack, with plates for 13 mm and 16 mm tubes, a drying attachment and waste containers available separately. It suits busy environmental, pharmaceutical, food and toxicology laboratories.
Specifications
Technical specifications
13 parameters
General
- Positions
- 24
- Cartridge compatibility
- Standard SPE cartridges 1 mL to 15 mL, round and square formats
- Flow control
- Individual stopcock per port
- Vessel
- Transparent glass chamber with vacuum gauge and valve
24-port series parts
- 82401
- Vacuum manifold set, complete
- 82402
- Glass chamber
- 82403
- Cover, gasket and 24 stopcocks
- 82405
- Vacuum gauge
- 82406
- Collection rack (shelves, clips, posts)
- 82407 / 82408
- Plates: 13 mm / 16 mm test tube
- 82409
- Stopcocks, 24/pk
- 82410 / 82411
- Drying attachment / waste container (2/pk)
Accessories
- Accessories
- PP and stainless steel manifold needles (80100-80103), empty 1/3/6 mL SPE tubes (T01/T03/T06-010), frits (F01/F03/F06-010), large volume sampler (83100)
Features
Key features
- 01
Individual stopcocks
Each port has its own stopcock for precise flow control.
- 02
Even vacuum
Uniform vacuum distribution across all ports.
- 03
Transparent glass chamber
Lets the operator watch samples during processing.
- 04
Standard cartridges
Accepts 1 to 15 mL SPE cartridges, round or square.
- 05
Collection options
Collection rack with plates for 13 mm and 16 mm tubes and other vessels.
- 06
Bench-friendly
Compact, chemically resistant construction that works with standard lab vacuum pumps.
