Reference: ASH-D2 series

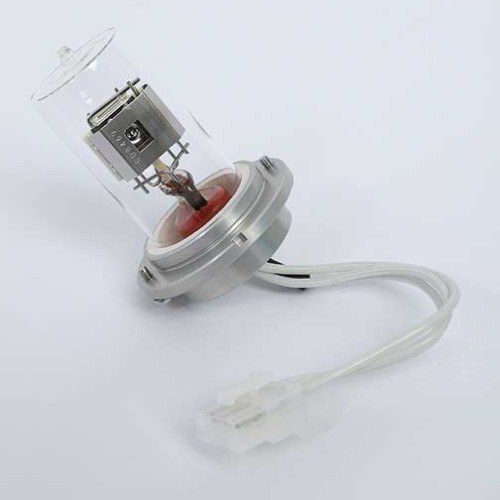

Deuterium (D2) Lamps for HPLC and UV-Vis
OEM-equivalent deuterium lamps for HPLC and UV-Vis detectors from Agilent, Waters, Shimadzu, Thermo and many legacy systems, including RFID versions.
Key specifications
- Lamp type
- Deuterium (D2) lamp for HPLC and UV-Vis detectors
- Assembly
- UK-aligned assembly built on the same bare lamps used by instrument manufacturers
- RFID versions
- Available for Agilent VWD, DAD and 1290 detectors
- Testing
- Each lamp tested for intensity, noise and stability
- Configured to your application by our specialists
- Installed and commissioned on site
- Training and after-sales support across Jordan, the GCC and MENA
Deuterium (D2) Lamps for HPLC and UV-Vis
Request a quoteOverview
Product overview
Ashtech Science supplies deuterium (D2) lamps as drop-in replacements for the UV source in HPLC detectors and UV-Vis spectrophotometers. The range covers current detectors, including RFID-tagged lamps for Agilent VWD, DAD and 1290 modules, as well as many older instruments that are no longer well served by their original suppliers.
In 2024 the company launched its own UK-aligned lamp range. These lamps are assembled around the same bare lamps that instrument makers use, then optically aligned and tested for intensity, noise and stability, so they can replace the original part without any change to the analytical method.
For models outside the listed range, Ashtech works with lamp manufacturers in Europe, Asia and the USA, including Excelitas Noblelight and Hamamatsu, to source the required lamp. Typical users are pharmaceutical QC, environmental, food, academic and contract laboratories.
Specifications
Technical specifications
19 parameters
General
- Lamp type
- Deuterium (D2) lamp for HPLC and UV-Vis detectors
- Assembly
- UK-aligned assembly built on the same bare lamps used by instrument manufacturers
- RFID versions
- Available for Agilent VWD, DAD and 1290 detectors
- Testing
- Each lamp tested for intensity, noise and stability
Agilent
- ASH-D2-AGI-VWD
- OEM eq. G1314-60100, 2140-0585; Agilent VWD G1314D/E/F, G7114A/B
- ASH-D2-AGI-VWD-RFID
- OEM eq. G1314-60101; Agilent VWD G1314D/E/F, G7114A/B with RFID
- ASH-D2-AGI-8453
- OEM eq. 2140-0605; Agilent 8453 / 8454
- ASH-D2-AGI-DAD
- OEM eq. 5181-1530, 5182-1530, 2140-0813; Agilent 1100/1200 G1315/G1365 A & B DAD
- ASH-D2-AGI-DAD-RFID
- OEM eq. 2140-0820; Agilent 1100/1200 G1315/G1365 A & B DAD with RFID
- ASH-D2-AGI-1290
- OEM eq. 5190-0917; Agilent 1290, G4212/G7117 series
- ASH-D2-AGI-1290-RFID
- OEM eq. 5190-0917 (as published); Agilent 1290, G4212/G7117 series with RFID
Other brands
- ASH-D2-ABI-757 / ASH-D2-ABI-785A
- OEM eq. N2920149, N29000484; ABI 757 / 759 / 783A / 785A / 1000S / 980 / 120A / 130A
- ASH-D2-ANJ-SPEC
- OEM eq. 820-60021-0 / 820-60274-C; Spekol / Specord detectors (excl. Spekol 1300/1500/2000)
- ASH-D2-VAR-P330
- OEM eq. 393570502; Varian ProStar 330 DAD
- ASH-D2-BEC-DU
- OEM eq. 514366; Beckman DU600-7500
- ASH-D2-GIL-118
- OEM eq. 100326 / 2140-60001; Gilson 115-119, 151-156
- ASH-D2-JAS-UV
- OEM eq. 5330-0091 / 6687-H617; Jasco UV / MD series
- ASH-D2-KNA-2500
- OEM eq. A4071; Knauer Smartline UV 2500/2600, Welchrom K2000
- ASH-D2-MH-L
- OEM eq. 890-2430 / 892-2550; Hitachi LaChrom L series and Chromaster
Features
Key features
- 01
OEM-equivalent output
Built from the same bare lamps used by leading instrument manufacturers.
- 02
Drop-in replacement
Fits the original lamp position with no method changes.
- 03
Optimised alignment
UK assembly with precise optical alignment for better detector response.
- 04
Tested lamps
Each lamp is checked for intensity, noise and stability before dispatch.
- 05
RFID versions
RFID-tagged lamps for Agilent VWD, DAD and 1290 detectors.
- 06
Legacy instruments
Lamps for older ABI, Beckman, Gilson, Jasco, Knauer, Hitachi and Varian detectors.
From order to operation
We stay with the instrument after it arrives
Al-Shaker specifies the configuration, documents the system, and supports it across Jordan, the GCC, and MENA.
- 01
Consult
- 02
Plan
- 03
Supply
- 04
Install
- 05
Train
- 06
Support
