Syringe Filters
Colour-coded syringe filters in eight membrane types, 4 to 30 mm diameters and 0.22/0.45 µm pores, for clean sample preparation before HPLC, GC and LC-MS.
Key specifications
- Membranes
- Nylon, MCE, PTFE, hydrophilic PVDF, PES, PP, PET, glass fibre (GF)
- Diameters
- 4, 13, 25 and 30 mm (PET: 4, 13, 25 mm; GF: 13, 25, 30 mm)
- Pore sizes
- 0.22 and 0.45 µm; GF 1.0 µm
- Connections
- Luer-lock inlet, female luer outlet
- Configured to your application by our specialists
- Installed and commissioned on site
- Training and after-sales support across Jordan, the GCC and MENA
Syringe Filters
Request a quoteOverview
Product overview

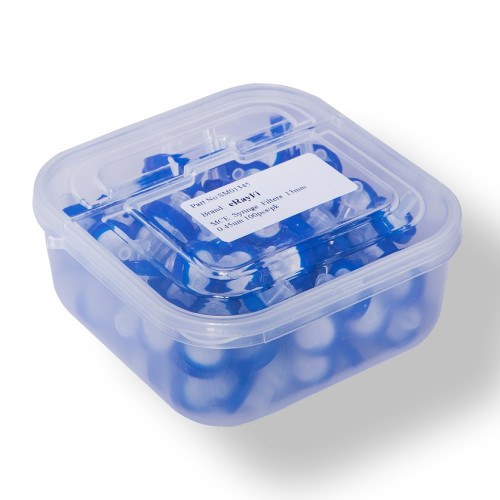

Ashtech Science syringe filters remove particles from samples before injection, protecting HPLC and UHPLC columns, GC inlets and LC-MS systems. Each filter has a polypropylene housing with a luer-lock inlet and female luer outlet, and is blister-packed individually.
The range covers nylon, MCE, PTFE, hydrophilic PVDF, PES, polypropylene, PET and glass fibre membranes. PTFE suits aggressive organic solvents, nylon is a general-purpose choice for aqueous and organic samples, and PES and MCE give low protein binding for biological work. Glass fibre filters with a 1.0 µm rating serve as pre-filters for heavily loaded samples.
Filters come in 4, 13, 25 and 30 mm diameters with 0.22 or 0.45 µm pores, and each membrane and pore size has its own housing colour to prevent mix-ups at the bench. Packs of 100, 500 and 1000 are listed, and sterile versions are available.
Specifications
Technical specifications
16 parameters
General
- Membranes
- Nylon, MCE, PTFE, hydrophilic PVDF, PES, PP, PET, glass fibre (GF)
- Diameters
- 4, 13, 25 and 30 mm (PET: 4, 13, 25 mm; GF: 13, 25, 30 mm)
- Pore sizes
- 0.22 and 0.45 µm; GF 1.0 µm
- Connections
- Luer-lock inlet, female luer outlet
- Housing
- Polypropylene
- Packaging
- Individually blister-packed; packs of 100, 500 and 1000
- Sterile options
- Available
- Suitable for
- HPLC, UHPLC, GC, LC-MS and routine laboratory analysis
Part numbers and colour codes
- Nylon (SN series)
- 0.22 µm yellow, 0.45 µm pink; e.g. SN01322, SN02545
- MCE (SM series)
- 0.22 µm green, 0.45 µm blue; e.g. SM01322, SM02545
- PTFE (SP series)
- 0.22 µm purple, 0.45 µm orange; e.g. SP01322, SP02545
- Hydrophilic PVDF (SPV series)
- 0.22 µm coffee, 0.45 µm red; e.g. SPV1322, SPV2545
- PES (SPE series)
- 0.22 µm white, 0.45 µm azure; e.g. SPE1322, SPE2545
- PP (SPP series)
- 0.22 µm black, 0.45 µm blue; e.g. SPP1322, SPP2545
- PET (SPET series)
- 0.22 and 0.45 µm; e.g. SPET1322, SPET2545
- Glass fibre (SGF series)
- 1.0 µm; SGF13100, SGF25100, SGF30100
Features
Key features
- 01
Eight membranes
Nylon, MCE, PTFE, PVDF, PES, PP, PET and glass fibre.
- 02
Colour coded
A separate housing colour for each membrane and pore size.
- 03
Low extractables
Suited to sensitive HPLC and LC-MS work.
- 04
High flow, low hold-up
High flow rates with minimal sample loss.
- 05
Robust housing
Chemically resistant polypropylene with luer-lock inlet.
- 06
Flexible packs
Blister-packed filters in packs of 100, 500 and 1000; sterile options available.
