Reference: BWB-BIO AV
BWB BIO AV Flame Photometer
Simplified offshoot of the BWB BIO with enhanced lithium detection, calibrating and measuring Na, K and Li together at a single dilution from 1:6 to 1:100.
Key specifications
- Ions measured
- Na, K and Li simultaneously
- Common dilution range
- 1:6 to 1:100 for Na, K and Li at the same dilution
- Stored user curves
- 2 user-defined calibration curves
- Internal reference standard
- Caesium or lithium IRS option
- Configured to your application by our specialists
- Installed and commissioned on site
- Training and after-sales support across Jordan, the GCC and MENA
BWB BIO AV Flame Photometer
Request a quoteOverview
Product overview
The BWB BIO AV is derived from the BWB BIO, with dedicated hardware, software and firmware, a simplified menu structure and enhanced lithium detection. Sodium, potassium and lithium are calibrated and measured at the same time using the same dilution, anywhere from 1:6 to 1:100, which streamlines throughput in busy laboratories.
Two user-defined calibration curves can be stored, so different sample types can be measured without re-entering settings. A caesium or lithium internal reference standard is available to improve accuracy and reproducibility, and IQ/OQ/PQ certification is standard on this model.
The FP-PC software allows calibration curves to be viewed and edited and generates PDF and CSV reports, and the instrument can be set up with BWB's AFHS autosampler. An integrated printer gives hard-copy records for QA/QC where PCs are not allowed.
Specifications
Technical specifications
19 parameters
Performance
- Ions measured
- Na, K and Li simultaneously
- Internal reference standard
- Caesium or lithium IRS option
- Limit of detection
- Na 0.0013 mmol/L; K 0.0005 mmol/L; Li 0.003 mmol/L
- Limit of quantification
- Na 0.0043 mmol/L; K 0.0013 mmol/L; Li 0.0072 mmol/L
- Precision
- <1 % coefficient of variation for 20 consecutive samples over 10 minutes at ≤100 ppm equivalent
- Specificity
- Na/K/Li <1 % to each other at equal concentrations below 100 ppm
- Time to stability
- Less than 15 s after the sample enters the flame
- Minimum warm-up time
- 25 minutes at 21 °C ambient
Sample handling
- Common dilution range
- 1:6 to 1:100 for Na, K and Li at the same dilution
- Sample uptake
- 2-3.5 mL/min
Calibration
- Stored user curves
- 2 user-defined calibration curves
Range
- Multi-point calibration (with dilution)
- Na 0.0043-300 mmol/L; K 0.0013-200 mmol/L; Li 0.0072-20 mmol/L
Interface
- Display

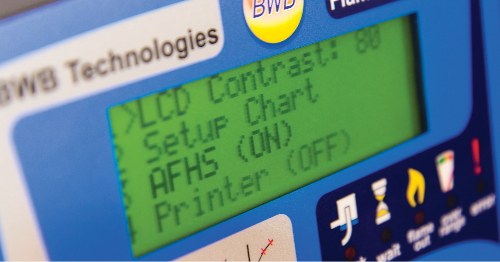

- Four-line back-lit alphanumeric LCD
- Printer

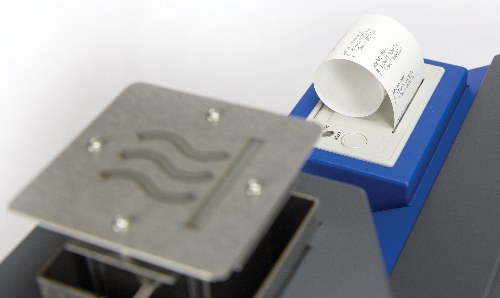

- Integrated printer with environmentally friendly ink
Physical
- Operating footprint
- 50 x 45 x 45 cm (H x W x D); 1 m clear space required above the chimney
- Instrument weight
- 14 kg (30.8 lb)
Utilities
- Power supply
- 100-250 V AC, 50/60 Hz
- Fuel gas
- Propane, butane or natural gas (natural gas with modifications; propane or butane recommended); regulated to 19 Bar as stated by BWB; flow 0.4 L/min
Supplied
- Included in the box
- IQ/OQ/PQ kit; 10,000 ppm calibration standard for each element
Features
Key features
- 01
One dilution for three ions
Na, K and Li are calibrated and measured together at the same dilution.
- 02
Enhanced lithium detection
Optimised for lithium alongside sodium and potassium.
- 03
Two stored curves
Keep two user-defined calibrations for different sample types.
- 04
Internal reference standard
Caesium or lithium IRS option.
- 05
Simplified menus
Streamlined operation compared with the BIO.
- 06
IQ/OQ/PQ as standard
Certification kit supplied with the instrument.
