BWB XP Flame Photometer
BWB's flagship five-channel flame photometer that measures and displays sodium, potassium, lithium, calcium and barium at the same time, with no filter changes between elements.
View product
BWB Flash Flame Photometer
Configurable flame photometer with a 5-inch touchscreen, built-in compressor and gas regulator, offered in seven models from single-element to four-element (Na, K, Li, Ca).
Key specifications
- FL-C
- Ca
- FL-K
- K
- FL-L
- Li
- FL-N
- Na
- Configured to your application by our specialists
- Installed and commissioned on site
- Training and after-sales support across Jordan, the GCC and MENA
BWB Flash Flame Photometer
Request a quoteOverview
Product overview

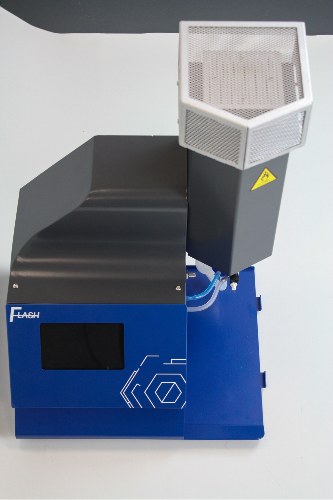

The BWB Flash is a configurable flame photometer with up to four channels that detects and displays all calibrated ions at once. It is offered in seven models: single-element versions for Ca, K, Li or Na (FL-C, FL-K, FL-L, FL-N), and multi-element FL-2 (Na, K), FL-3 (Na, K, Li) and FL-4 (Na, K, Li, Ca), so a lab buys only the channels it needs.

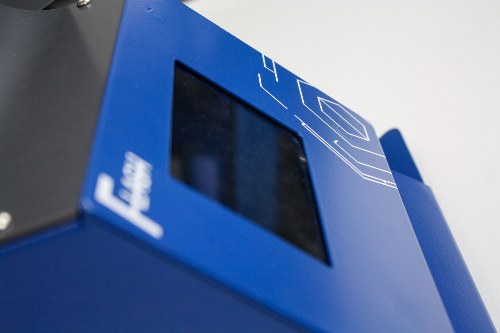

Operation is through a 5-inch colour capacitive touchscreen with large buttons that works with most disposable lab gloves. An auto-read function decides when a reading is stable, making results independent of the operator. An air compressor and gas regulator are built in, and 10,000 ppm calibration standards and basic labware are supplied.
BWB states that the Flash uses 13 % less gas and 26 % less electricity than earlier generations. At 10 kg it is lighter than the XP family, and data can be exported over USB to the FP-PC software as CSV or PDF reports.
Specifications
Technical specifications
24 parameters
Models
- FL-C
- Ca
- FL-K
- K
- FL-L
- Li
- FL-N
- Na
- FL-2
- Na and K
- FL-3
- Na, K and Li
- FL-4
- Na, K, Li and Ca
Range
- Single-point calibration
- Na 0.1-60 ppm; K 0.05-100 ppm; Li 0.05-50 ppm; Ca 1.0-100 ppm
- Multi-point calibration (with dilution)
- Na 0.1-1000 ppm; K 0.05-1000 ppm; Li 0.05-1000 ppm; Ca 1.0-1000 ppm
Performance
- Limit of detection
- Na 0.03 ppm; K 0.02 ppm; Li 0.02 ppm; Ca 0.3 ppm
- Limit of quantification
- Na 0.1 ppm; K 0.05 ppm; Li 0.05 ppm; Ca 1 ppm
- Precision
- <1 % coefficient of variation for 20 consecutive samples over 10 minutes at ≤100 ppm (after stabilisation)
- Specificity
- Na/K/Li <1 % to each other at equal concentrations below 100 ppm
- Time to stability
- Less than 15 s after the sample enters the flame
- Minimum warm-up time
- 25 minutes at 21 °C ambient
Sample handling
- Sample uptake
- 2.5-4 mL/min
Interface
- Display
- 5" colour capacitive touchscreen, usable with most laboratory gloves
- Outputs
- USB; CSV/PDF reports via FP-PC software
Physical
- Operating footprint
- 101 x 45 x 35 cm (H x W x D) including 1 m clearance above the chimney
- Instrument dimensions
- 51 x 33 x 35 cm (H x W x D)
- Instrument weight
- 10 kg (22.1 lb)
Efficiency
- Consumption vs previous generation
- Gas use 13 % lower; electricity use 26 % lower (as stated by BWB)
Utilities
- Power supply
- 100-250 V AC, 50/60 Hz, auto-selecting
- Fuel gas
- Propane, butane or natural gas (natural gas with modifications; propane or butane recommended); regulated to 19 Bar as stated by BWB; flow 0.4 L/min
Features
Key features
- 01
Choose your channels
Seven models from one element (Ca, K, Li or Na) up to four elements simultaneously.
- 02
5-inch touchscreen
Colour capacitive display with large buttons, compatible with most disposable lab gloves.
- 03
Auto-read
Stable readings are determined automatically, removing operator judgement.
- 04

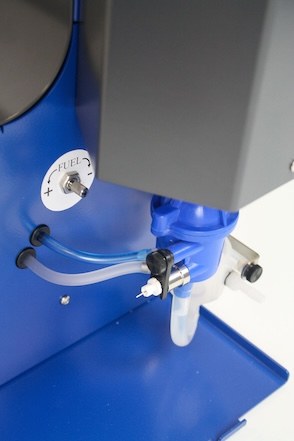

Compressor and regulator built in
Only fuel gas needs to be connected.
- 05
Lower running costs
BWB quotes 13 % lower gas and 26 % lower electricity use than previous models.
- 06
Ready-to-use kit
10,000 ppm standards for the relevant elements, cleaning solution and labware included.
