Reference: BWB-XP Plus
BWB XP Plus Flame Photometer
Four-channel flame photometer built on the XP platform that reads Na, K, Li and Ca together and adds a caesium or lithium internal reference standard.
Key specifications
- Elements measured
- Na, K, Li and Ca simultaneously
- Internal reference standard
- Caesium or lithium IRS option
- Single-point calibration
- Na 0.1-60 ppm; K 0.05-100 ppm; Li 0.05-50 ppm; Ca 1.0-100 ppm
- Multi-point calibration
- Na 0.1-1000 ppm; K 0.05-1000 ppm; Li 0.05-1000 ppm; Ca 1.0-1000 ppm
- Configured to your application by our specialists
- Installed and commissioned on site
- Training and after-sales support across Jordan, the GCC and MENA
BWB XP Plus Flame Photometer
Request a quoteOverview
Product overview
The BWB XP Plus is derived from the XP and combines it with functions taken from BWB's industry-specific instruments. It measures and displays sodium, potassium, lithium and calcium simultaneously, so switching between analytes needs no filter change or recalibration.
Its key addition is the Internal Reference System (IRS): either caesium or lithium can be used as an internal standard that compensates for small drifts during calibration and measurement, which helps reproducibility in demanding matrices.
Like the XP it includes a built-in air compressor, solutions and labware, a large LCD, USB data transfer to the FP-PC software, an analogue output with optional 4-20 mA, and an optional integrated printer. Web-based IQ/OQ/PQ certification is available.
Specifications
Technical specifications
19 parameters
Performance
- Elements measured
- Na, K, Li and Ca simultaneously
- Internal reference standard
- Caesium or lithium IRS option
- Limit of detection
- Na 0.03 ppm; K 0.02 ppm; Li 0.02 ppm; Ca 0.3 ppm
- Limit of quantification
- Na 0.1 ppm; K 0.05 ppm; Li 0.05 ppm; Ca 1 ppm
- Precision
- <1 % coefficient of variation for 20 consecutive samples over 10 minutes at ≤100 ppm (after stabilisation)
- Specificity
- Na/K/Li <1 % to each other at equal concentrations below 100 ppm
- Time to stability
- Less than 15 s after the sample enters the flame
- Minimum warm-up time
- 25 minutes at 21 °C ambient
Range
- Single-point calibration
- Na 0.1-60 ppm; K 0.05-100 ppm; Li 0.05-50 ppm; Ca 1.0-100 ppm
- Multi-point calibration
- Na 0.1-1000 ppm; K 0.05-1000 ppm; Li 0.05-1000 ppm; Ca 1.0-1000 ppm
Sample handling
- Sample uptake
- 2-3.5 mL/min
Interface

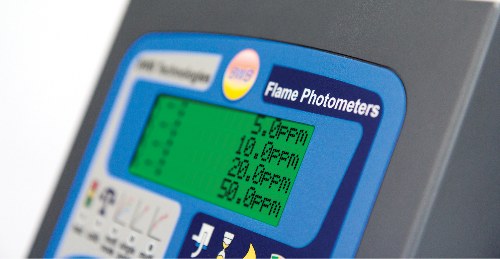

- Display
- Four-line back-lit alphanumeric LCD
- Outputs
- USB; 0-2.5 V analogue output (optional 4-20 mA instead); optional integrated printer; CSV/PDF reports via FP-PC software
- Units of measure
- 4 user-selectable units; selectable decimal places
Physical
- Operating footprint
- 50 x 45 x 45 cm (H x W x D); 1 m clear space required above the chimney
- Instrument dimensions
- 51 x 39 x 35 cm (H x W x D)
- Instrument weight
- 14 kg (30.8 lb)
Utilities
- Power supply
- 100-250 V AC, 50/60 Hz, auto-selecting
- Fuel gas
- Propane, butane or natural gas (natural gas with modifications; propane or butane recommended); regulated to 19 Bar as stated by BWB; flow 0.4 L/min
Features
Key features
- 01
Four elements at once
Na, K, Li and Ca are detected and displayed together.
- 02
Internal reference standard
Caesium or lithium can be used as an internal standard to correct small changes during calibration and measurement.
- 03
Built-in air compressor
Supplied ready to run with solutions and labware; only fuel gas is needed.
- 04
FP-PC connectivity
USB data transfer with CSV and PDF reporting.
- 05
Flexible outputs
0-2.5 V analogue output, optional 4-20 mA and optional printer.
