Reference: BWB Nuclear
BWB Nuclear Flame Photometer
Online four-channel lithium flame photometer for monitoring low lithium concentrations in nuclear power plants, with a two-wire 4-20 mA SCADA output.
Key specifications
- Element measured
- Lithium, on 4 independent Li channels with up to 10 calibration points each
- Single-point calibration
- Li 0.05-50 ppm
- Multi-point calibration
- Li 0.05-1000 ppm
- Limit of detection
- Li 0.02 ppm
- Configured to your application by our specialists
- Installed and commissioned on site
- Training and after-sales support across Jordan, the GCC and MENA
BWB Nuclear Flame Photometer
Request a quoteOverview
Product overview
The BWB Nuclear is a specialty flame photometer designed for measuring low lithium concentrations in nuclear power stations. It was developed together with BWB's distributor in Germany and has four active lithium channels, each calibrated independently over the range of interest to raise accuracy.
All four channels are detected and displayed simultaneously, and one channel can be tied to a two-wire 4-20 mA output for SCADA systems, which makes the unit suitable for online use. With the optional collection cup, the instrument becomes a continuous real-time analyser that can run 24/7.
Data can also be shared through the FP-PC software over a network. The unit includes a built-in air compressor, a 10,000 ppm lithium standard that makes about 15 litres of 100 ppm solution, and basic labware.
Specifications
Technical specifications
19 parameters
Performance
- Element measured
- Lithium, on 4 independent Li channels with up to 10 calibration points each
- Limit of detection
- Li 0.02 ppm
- Limit of quantification
- Li 0.05 ppm
- Precision
- <1 % coefficient of variation for 20 consecutive samples over 10 minutes at ≤100 ppm (after stabilisation)
- Chemical interference
- Na/K/Li <0.5 % to each other at equal concentrations below 100 ppm
- Time to stability
- Less than 15 s after the sample enters the flame
- Minimum warm-up time
- 25 minutes at 21 °C ambient
Range
- Single-point calibration
- Li 0.05-50 ppm
- Multi-point calibration
- Li 0.05-1000 ppm
Sample handling

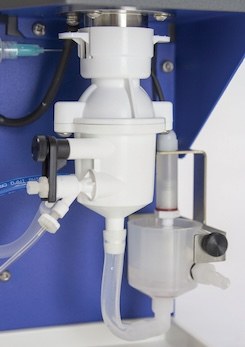

- Sample uptake
- 2-3.5 mL/min
- Online sampling
- Optional collection cup for continuous, real-time 24/7 measurement
Interface
- Display
- Four-line back-lit alphanumeric LCD
- Process output
- Two-wire 4-20 mA output linked to one channel for SCADA integration
- Other outputs
- USB; 0-2.5 V analogue; optional integrated printer; CSV/PDF via FP-PC
Physical
- Operating footprint
- 50 x 45 x 45 cm (H x W x D); 1 m clear space required above the chimney
- Instrument weight
- 14 kg (30.8 lb)
Utilities
- Power supply
- 100-250 V AC, 50/60 Hz, auto-selecting

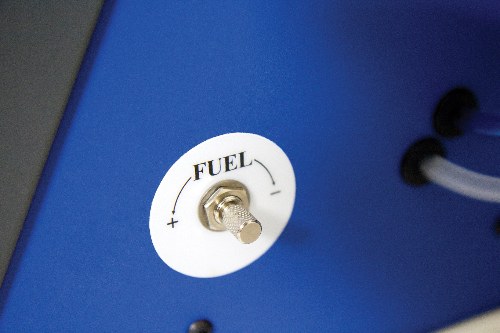

- Fuel gas

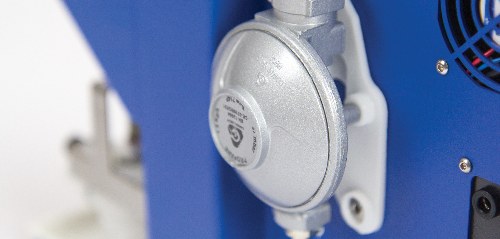

- Propane, butane or natural gas (natural gas with modifications; propane or butane recommended); regulated to 19 Bar as stated by BWB; flow 0.4 L/min
Supplied
- Included in the box
- 4 x 150 mL 10,000 ppm lithium standard; pipettes, sample cups, flask and waste tubing
Features
Key features
- 01
Four lithium channels
Each channel is calibrated independently within the range of interest.
- 02
SCADA integration
Two-wire 4-20 mA output set to client protocols.
- 03
Online 24/7 analysis
Optional collection cup turns the unit into a real-time continuous analyser.
- 04
Built-in air compressor
Solutions and labware are supplied.
- 05
Network data sharing
FP-PC software shares results over the internet or intranet.
