Reference: BWB SFP
BWB SFP Special Flame Photometer
Customisable special flame photometer that can be configured with combinations of Na, K, Li, Ca, Cs and Ba detectors, built with BWB engineers around a specific application.
Key specifications
- Elements available
- Customisable combinations of Na, K, Li, Ca, Ba and Cs
- Single-point calibration
- Na 0.1-60 ppm; K 0.05-100 ppm; Li 0.05-50 ppm; Ca 1.0-100 ppm; Ba 5-100 ppm; Cs 0.14-100 ppm
- Multi-point calibration
- Na 0.1-1000 ppm; K 0.05-1000 ppm; Li 0.05-1000 ppm; Ca 1.0-1000 ppm; Ba 5.0-3000 ppm; Cs 0.5-1000 ppm
- Limit of detection
- Na 0.03 ppm; K 0.02 ppm; Ca 0.3 ppm; Ba 1.6 ppm; Cs 0.041 ppm
- Configured to your application by our specialists
- Installed and commissioned on site
- Training and after-sales support across Jordan, the GCC and MENA
BWB SFP Special Flame Photometer
Request a quoteOverview
Product overview
The BWB SFP (Special Flame Photometer) is BWB's route for applications that standard models do not cover. Detectors for sodium, potassium, lithium, calcium, caesium and barium can be combined, and customers work with BWB engineers to define the instrument, its calibration curves and its calibration solutions.
BWB cites a supplier of high-purity lithium that uses a customised SFP alongside its ICP and AAS instruments, and a co-development project with an oil and gas company for online measurement. Options include a left- or right-hand chimney, custom calibration solutions with up to 14 points, client-defined units of measure, an internal reference standard, an optional collection cup for live readings and compatibility with the AFHS autosampler.

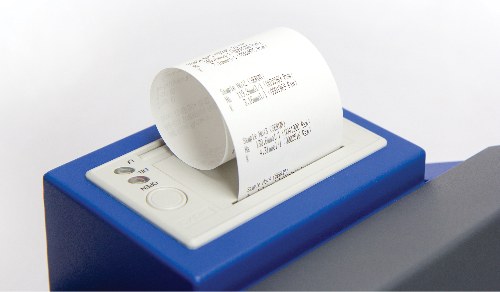

As with other BWB models, the SFP includes a built-in air compressor, USB data sharing through FP-PC, analogue and optional 4-20 mA outputs and an integrated printer. Box contents are agreed with each customer.
Specifications
Technical specifications
17 parameters
Performance
- Elements available
- Customisable combinations of Na, K, Li, Ca, Ba and Cs
- Limit of detection
- Na 0.03 ppm; K 0.02 ppm; Ca 0.3 ppm; Ba 1.6 ppm; Cs 0.041 ppm
- Limit of quantification
- Na 0.1 ppm; K 0.05 ppm; Ca 1 ppm; Ba 5.0 ppm; Cs 0.14 ppm
- Precision
- <1 % coefficient of variation for 20 consecutive samples over 10 minutes at ≤100 ppm (after stabilisation)
- Specificity
- Na/K/Li <1 % to each other at equal concentrations below 100 ppm
- Minimum warm-up time
- 25 minutes at 21 °C ambient
Range
- Single-point calibration
- Na 0.1-60 ppm; K 0.05-100 ppm; Li 0.05-50 ppm; Ca 1.0-100 ppm; Ba 5-100 ppm; Cs 0.14-100 ppm
- Multi-point calibration
- Na 0.1-1000 ppm; K 0.05-1000 ppm; Li 0.05-1000 ppm; Ca 1.0-1000 ppm; Ba 5.0-3000 ppm; Cs 0.5-1000 ppm
Sample handling
- Sample uptake
- 2-3.5 mL/min

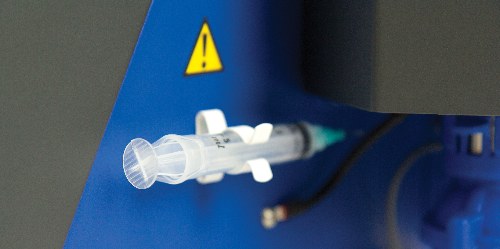

- Live readings
- Optional collection cup; compatible with BWB AFHS
Interface
- Display
- Four-line back-lit alphanumeric LCD
- Outputs
- USB; 0-2.5 V analogue output (optional 4-20 mA instead); optional integrated printer; CSV/PDF reports via FP-PC software
Options
- Configuration options
- Left- or right-hand chimney; custom calibration curves; custom calibration solutions up to 14 points; client-defined units of measure
Physical
- Operating footprint
- 50 x 45 x 45 cm (H x W x D); 1 m clear space required above the chimney
- Instrument weight
- 14 kg (30.8 lb)
Utilities
- Power supply
- 100-250 V AC, 50/60 Hz, auto-selecting
- Fuel gas
- Propane, butane or natural gas (natural gas with modifications; propane or butane recommended); regulated to 19 Bar as stated by BWB; flow 0.4 L/min
Features
Key features
- 01
Custom element combinations
Choose from Na, K, Li, Ca, Cs and Ba detectors to match the application.
- 02
Engineered with BWB
Calibration curves, solutions and units of measure are defined with BWB engineers.
- 03
Internal reference standard
IRS available for improved reproducibility.
- 04
Live and automated sampling
Optional collection cup for live readings; compatible with BWB AFHS.
- 05
Configurable hardware
Left- or right-hand chimney configuration.
- 06
Sodium interference correction
Calcium results corrected for high sodium levels.
