Reference: BWB SUGAR

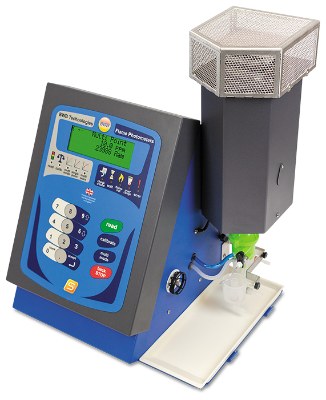

BWB Sugar Flame Photometer
Sodium and potassium flame photometer for the sugar refining industry, with a dedicated dual channel, 4-20 mA SCADA output and collection cup for 24/7 online monitoring.
Key specifications
- Elements measured
- Na and K on a dedicated dual channel
- Single-point calibration
- Na 0.1-60 ppm; K 0.05-100 ppm
- Multi-point calibration
- Na 0.1-1000 ppm; K 0.05-1000 ppm
- Limit of detection
- Na 0.03 ppm; K 0.02 ppm
- Configured to your application by our specialists
- Installed and commissioned on site
- Training and after-sales support across Jordan, the GCC and MENA
BWB Sugar Flame Photometer
Request a quoteOverview
Product overview
The BWB SUGAR is a specialty flame photometer requested and designed for sugar production, where flame photometry has long been used to control potassium and sodium. BWB optimised its optical array so the instrument has a dedicated channel arrangement for precise and accurate potassium and sodium measurement.

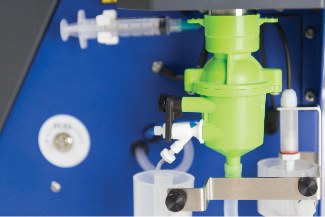

For continuous monitoring, the collection cup gives the instrument real-time access to a sample stream: the sample only needs to be near ambient temperature and fed at about 5 mL per minute. A two-wire 4-20 mA output links directly to SCADA systems, and an internal reference standard is available.
Through the FP-PC software, results from several installations can be shared over the intranet or internet so that a central control room can supervise remote refinery sites, and CSV files can be used to build custom spreadsheets. The unit is supplied with multi-point sodium and potassium calibration solutions, a built-in air compressor and labware.
Specifications
Technical specifications
17 parameters
Performance
- Elements measured
- Na and K on a dedicated dual channel
- Limit of detection
- Na 0.03 ppm; K 0.02 ppm
- Limit of quantification
- Na 0.1 ppm; K 0.05 ppm
- Precision
- <1 % coefficient of variation for 20 consecutive samples over 10 minutes at ≤100 ppm (after stabilisation)
- Specificity
- Na/K/Li <1 % to each other at equal concentrations below 100 ppm
- Time to stability
- Less than 15 s after the sample enters the flame
- Minimum warm-up time
- 25 minutes at 21 °C ambient
Range
- Single-point calibration
- Na 0.1-60 ppm; K 0.05-100 ppm
- Multi-point calibration
- Na 0.1-1000 ppm; K 0.05-1000 ppm
Sample handling
- Sample uptake
- 2-3.5 mL/min
- Online sampling
- Collection cup for 24/7 live sampling; sample near ambient temperature at about 5 mL/min feed
Interface
- Display
- Four-line back-lit alphanumeric LCD
- Outputs
- USB; 4-20 mA two-wire output for direct SCADA link; optional printer; CSV/PDF via FP-PC
Physical
- Operating footprint
- 50 x 45 x 45 cm (H x W x D); 1 m clear space required above the chimney
- Instrument weight
- 14 kg (30.8 lb)
Utilities
- Power supply
- 100-250 V AC, 50/60 Hz, auto-selecting
- Fuel gas
- Propane, butane or natural gas (natural gas with modifications; propane or butane recommended); regulated to 19 Bar as stated by BWB; flow 0.4 L/min
Features
Key features
- 01
Dedicated Na and K channel
Optical array optimised for accurate potassium and sodium readings.
- 02
Live online monitoring
Collection cup takes a continuous sample feed for real-time analysis.
- 03
SCADA output
Two-wire 4-20 mA output compatible with SCADA software.
- 04
Distributed control
FP-PC shares data from multiple sites to a central control room.
- 05
Built-in air compressor
Solutions and labware included; just add gas.
