Reference: BWB SYN FUELS

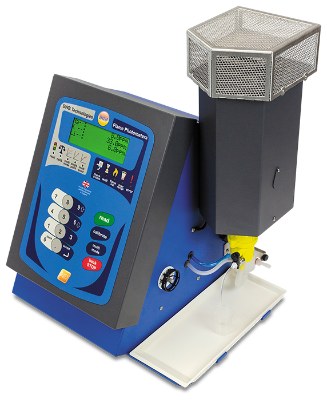

BWB SynFuels Flame Photometer
Four-channel flame photometer for synthetic and bio-fuel production, with solvent-resistant PTFE fluid handling and a collection cup fitted as standard for live readings.
Key specifications
- Elements measured
- Na, K, Li and Ca simultaneously
- Internal reference standard
- Caesium or lithium IRS option
- Single-point calibration
- Na 0.1-60 ppm; K 0.05-100 ppm; Li 0.05-50 ppm; Ca 1.0-100 ppm
- Multi-point calibration
- Na 0.1-1000 ppm; K 0.05-1000 ppm; Li 0.05-1000 ppm; Ca 1.0-1000 ppm
- Configured to your application by our specialists
- Installed and commissioned on site
- Training and after-sales support across Jordan, the GCC and MENA
BWB SynFuels Flame Photometer
Request a quoteOverview
Product overview
The BWB SYN FUELS is a hybridised flame photometer for synthetic fuel and bio-fuel production facilities. It measures and displays sodium, potassium, lithium and calcium simultaneously, combining improved accuracy and stability with shorter analysis times.
Its fluid handling sections use proprietary engineered thermoplastics with PTFE tubing that are highly resistant to the solvents found in synthetic fuel plants. A collection cup is fitted as standard for live readings, and a caesium or lithium internal reference standard is available. Calcium results are corrected for high sodium interference.
BWB notes that many sugar processors use the SUGAR model in the refinery and the SYN FUELS model at the bio-conversion plant. The instrument includes a built-in air compressor, solutions and labware, USB data sharing via FP-PC and analogue or optional 4-20 mA outputs.
Specifications
Technical specifications
19 parameters
Performance
- Elements measured
- Na, K, Li and Ca simultaneously
- Internal reference standard
- Caesium or lithium IRS option
- Limit of detection
- Na 0.03 ppm; K 0.02 ppm; Li 0.02 ppm; Ca 0.3 ppm
- Limit of quantification
- Na 0.1 ppm; K 0.05 ppm; Li 0.05 ppm; Ca 1 ppm
- Precision
- <1 % coefficient of variation for 20 consecutive samples over 10 minutes at ≤100 ppm (after stabilisation)
- Specificity
- Na/K/Li <1 % to each other at equal concentrations below 100 ppm
- Time to stability
- Less than 15 s after the sample enters the flame
- Minimum warm-up time
- 25 minutes at 21 °C ambient
Range
- Single-point calibration
- Na 0.1-60 ppm; K 0.05-100 ppm; Li 0.05-50 ppm; Ca 1.0-100 ppm
- Multi-point calibration
- Na 0.1-1000 ppm; K 0.05-1000 ppm; Li 0.05-1000 ppm; Ca 1.0-1000 ppm
Sample handling
- Sample uptake
- 2-3.5 mL/min
- Wetted materials
- PTFE (chemically resistant thermoplastics)
- Live readings
- Collection cup fitted as standard
Interface

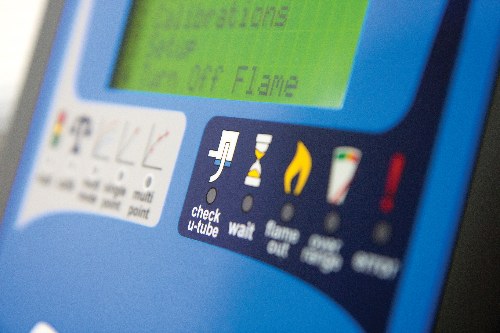

- Display
- Four-line back-lit alphanumeric LCD
- Outputs
- USB; 0-2.5 V analogue output (optional 4-20 mA instead); optional integrated printer; CSV/PDF reports via FP-PC software
Physical
- Operating footprint
- 50 x 45 x 45 cm (H x W x D); 1 m clear space required above the chimney
- Instrument weight
- 14 kg (30.8 lb)
Utilities
- Power supply
- 100-250 V AC, 50/60 Hz
- Fuel gas
- Propane, butane or natural gas (natural gas with modifications; propane or butane recommended); regulated to 19 Bar as stated by BWB; flow 0.4 L/min
Features
Key features
- 01
Solvent-resistant fluid path
Engineered thermoplastics and PTFE withstand solvents used in fuel production.
- 02
Four elements at once
Na, K, Li and Ca detected and displayed simultaneously.
- 03

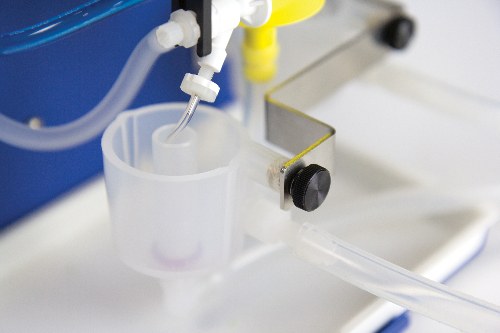

Collection cup as standard
Allows live readings from a sample stream.
- 04
Internal reference standard
Caesium or lithium IRS option.
- 05
Built-in air compressor
Supplied with solutions and labware.
