Reference: LIXELL

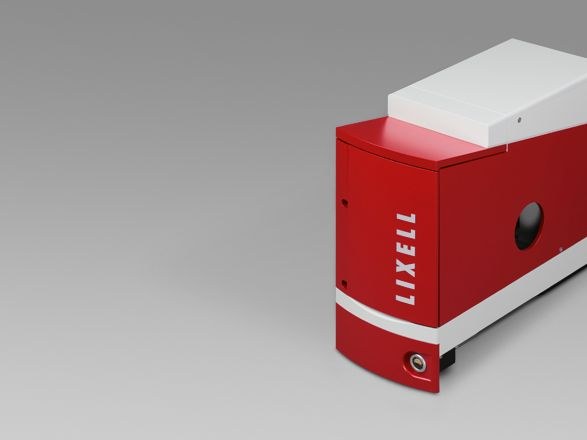

LIXELL wet disperser for image analysis
Open, modular wet dispersion cell for QICPIC covering 1 to 2,000 µm, with exchangeable RFID-identified cuvettes and operation in flow-through or circulation mode from 20 ml.
Key specifications
- Particle size
- 1 - 2,000 µm
- Minimum sample volume
- 20 ml
- Cuvette operating limits
- Up to 3 bar, up to 80 °C
- Cuvette identification
- RFID, automatic
- Configured to your application by our specialists
- Installed and commissioned on site
- Training and after-sales support across Jordan, the GCC and MENA
LIXELL wet disperser for image analysis
Request a quoteOverview
Product overview
LIXELL is the most versatile wet dispersion system for dynamic image analysis with QICPIC. Its open flow cell has inlet and outlet connectors and accepts cuvettes of different optical path lengths, which are exchanged easily and recognised automatically by RFID.
The software positions the cuvette along the optical axis, acting as autofocus so particles are imaged at maximum sharpness. Cuvettes work up to 3 bar and 80 °C. LIXELL can run in flow-through or circulation mode with LIQXI, another pump, a syringe (down to 20 ml) or an external basin, and hose and gasket materials can be chosen for chemical resistance.
Specifications
Technical specifications
6 parameters
Range
- Particle size
- 1 - 2,000 µm
- Minimum sample volume
- 20 ml
Design
- Cuvette operating limits
- Up to 3 bar, up to 80 °C
- Cuvette identification
- RFID, automatic
Interface
- Power / control
- 24 V DC, 5.0 W max., RS485
Compatibility
- Sensor
- QICPIC
Features
Key features
- 01
Versatile
Flow-through or circulation operation.
- 02
Autofocus
Software-controlled cuvette positioning.
- 03
Quick cuvette change
Automatic RFID identification.
- 04
Small volumes
From 20 ml sample.
