Reference: MYTOS

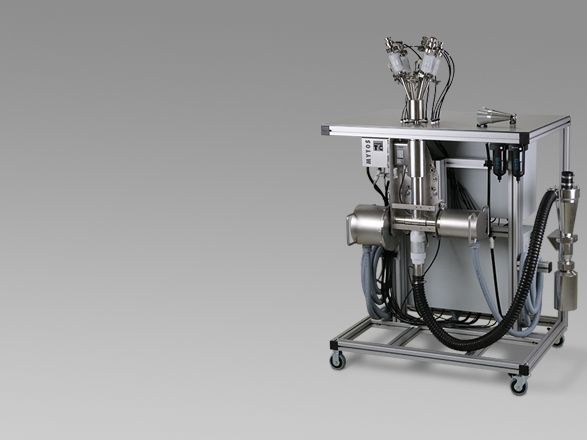

MYTOS process laser diffraction sensor
Robust laser diffraction sensor with integrated dry dispersion for in-line, on-line and at-line particle size analysis of dry powders from 0.25 to 3,500 µm.
Key specifications
- Measuring principle
- Laser diffraction with integrated RODOS dry dispersion
- Measuring range
- 0.25 - 3,500 µm
- Measuring rate
- Up to 2,000 measurements per second
- Modes
- In-line, on-line, at-line, off-line
- Configured to your application by our specialists
- Installed and commissioned on site
- Training and after-sales support across Jordan, the GCC and MENA
MYTOS process laser diffraction sensor
Request a quoteOverview
Product overview
MYTOS integrates the proven HELOS laser diffraction core and RODOS dry dispersion in one robust body. It analyses dry powders and granules from 0.25 µm to 3,500 µm in process environments and in automated laboratories.
With the TWISTER sampler it can be integrated directly into a process pipe (in-line) for representative results, or run on-line with TWISTER, MIXER, SCREWSAMPLER or probes. In automated labs it is fed by the VIBRI vibratory feeder (at-line). Typical uses are milling and spray granulation, from cement to pharmaceuticals, and ATEX versions can be configured.
Specifications
Technical specifications
8 parameters
Measurement
- Measuring principle
- Laser diffraction with integrated RODOS dry dispersion
- Measuring range
- 0.25 - 3,500 µm
- Measuring rate
- Up to 2,000 measurements per second
Installation
- Modes
- In-line, on-line, at-line, off-line
Sampling
- TWISTER pipe diameter
- 38 to 660 mm (in-line)
- Product temperature (TWISTER)
- Up to 150 °C
Interfaces
- Process control
- TCP/IP, OPC, Modbus, Profibus, PLC signals
Options
- Hazardous areas
- ATEX configurations available
Features
Key features
- 01
Multiple installation modes
In-line, on-line, at-line and off-line versions.
- 02
Real-time analysis
Up to 2,000 measurements per second.
- 03
Lab comparability
Shares core components with HELOS/RODOS for method transfer.
- 04
Control integration
TCP/IP, OPC, Modbus and Profibus connectivity.
