Reference: OASIS/L

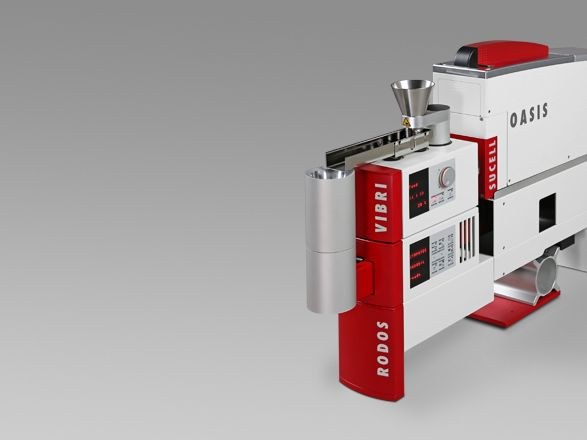

OASIS/L combined dry and wet disperser
Hybrid dispersing unit combining RODOS dry dispersion and SUCELL wet dispersion in one device, switching between modes in seconds for HELOS laser diffraction and QICPIC image analysis.
Key specifications
- Wet particle size
- 0.1 - 2,000 µm
- Dry particle size
- 0.1 - 4,000 µm
- Basin volume
- 500 ml (SVA: < 50 ml)
- Cuvette path lengths (HELOS)
- 2 mm and 4 mm
- Configured to your application by our specialists
- Installed and commissioned on site
- Training and after-sales support across Jordan, the GCC and MENA
OASIS/L combined dry and wet disperser
Request a quoteOverview
Product overview
OASIS combines the RODOS dry disperser in the lower part with a special SUCELL wet disperser on top. Switching between dry and wet takes seconds: a button press or software command lowers the flow cuvette into the measuring position, and a second command lifts it back into its protection housing for the dry aerosol jet.
Dry samples are dosed by the VIBRI vibratory feeder. For wet work, SUCELL provides a 500 ml stainless-steel basin with peristaltic pump, ultrasound, and optionally a Small Volume Adapter for below 50 ml. The cuvette position is software-controlled, providing autofocus in image analysis and the optimum working distance in laser diffraction.
Specifications
Technical specifications
5 parameters
Range
- Wet particle size
- 0.1 - 2,000 µm
- Dry particle size
- 0.1 - 4,000 µm
Wet
- Basin volume
- 500 ml (SVA: < 50 ml)
Design
- Cuvette path lengths (HELOS)
- 2 mm and 4 mm
Compatibility
- Sensors
- HELOS family and QICPIC family
Features
Key features
- 01
Hybrid
Dry (RODOS) and wet (SUCELL) in one device.
- 02
Fast switch
Mode change in a few seconds.
- 03
Both techniques
Works with HELOS and QICPIC.
- 04
Low volume option
Small Volume Adapter below 50 ml.
