Reference: PICTOS
PICTOS, PICTIS and PICCELL process image analysers
Process dynamic image analysers for dry powders, granules, suspensions and emulsions from 1 to 10,000 µm, installed on-line, at-line or off-line.
Key specifications
- Measuring principle
- Dynamic image analysis
- Overall range (family)
- 1 - 10,000 µm
- PICTOS + TWISTER (on-line)
- 1.8 - 3,500 µm, 4 modules

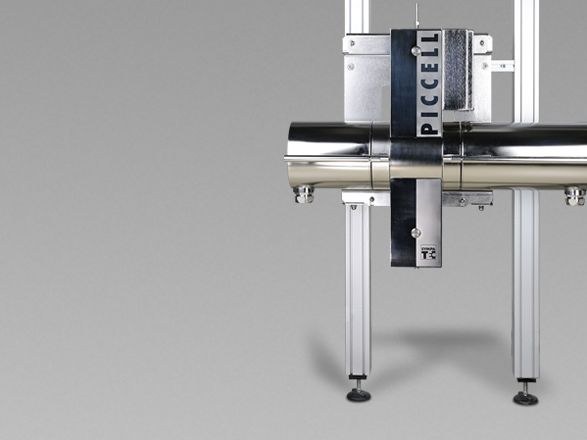

- PICCELL (on-line, wet)
- 1 - 5,000 µm, 5 modules
- Configured to your application by our specialists
- Installed and commissioned on site
- Training and after-sales support across Jordan, the GCC and MENA
PICTOS, PICTIS and PICCELL process image analysers
Request a quoteOverview
Product overview
PICTOS & Co. brings QICPIC dynamic image analysis into the process. PICTOS combines the image sensor with RODOS dry dispersion, PICTIS with the gentle GRADIS gravity disperser for coarser free-flowing material, and PICCELL uses a flow-through cuvette for suspensions and emulsions in a bypass.
Feeding is by TWISTER, MIXER, L-probes or VIBRI. Results report particle size and shape and can be passed to control systems over Modbus, Profibus or OPC. The systems use the same core components as the laboratory QICPIC for valid method transfer and offer GMP design for regulated environments.
Specifications
Technical specifications
7 parameters
Measurement
- Measuring principle
- Dynamic image analysis
- Overall range (family)
- 1 - 10,000 µm
Versions
- PICTOS + TWISTER (on-line)
- 1.8 - 3,500 µm, 4 modules
- PICCELL (on-line, wet)
- 1 - 5,000 µm, 5 modules
- PICTOS + VIBRI (at-line / off-line)
- 1.8 - >3,500 µm (fibres), 4 modules
- PICTIS + VIBRI (at-line / off-line)
- 1.8 - 10,000 µm (compact shapes), 4 modules
Interfaces
- Control integration
- Modbus, Profibus, OPC via TCP/IP, RS232 or RS485
Features
Key features
- 01
Three variants
PICTOS (dry), PICTIS (coarse dry) and PICCELL (wet).
- 02
Process integration
On-line, at-line and off-line operation.
- 03
Method transfer
Comparable with QICPIC using RODOS, GRADIS or LIXELL.
- 04
GMP design
For regulated environments.
From order to operation
We stay with the instrument after it arrives
Al-Shaker specifies the configuration, documents the system, and supports it across Jordan, the GCC, and MENA.
- 01
Consult
- 02
Plan
- 03
Supply
- 04
Install
- 05
Train
- 06
Support
