Reference: QUIXEL

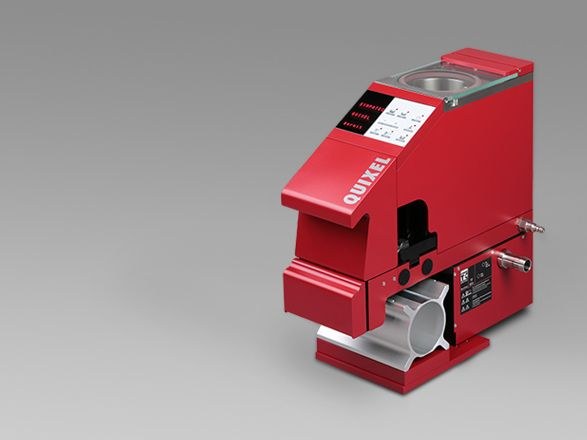

QUIXEL universal wet disperser
Fully automatic, tubeless wet dispersing system for suspensions and emulsions from 0.1 to 3,500 µm, including coarse and dense particles, for HELOS laser diffraction.
Key specifications
- Particle size
- 0.1 - 3,500 µm
- Analysis volume
- 250 ml to 1,000 ml (variable)
- Flow cuvette
- Stainless steel, 2 mm or 6 mm
- Gasket materials
- FKM, EPDM or FFKM
- Configured to your application by our specialists
- Installed and commissioned on site
- Training and after-sales support across Jordan, the GCC and MENA
QUIXEL universal wet disperser
Request a quoteOverview
Product overview
QUIXEL is a universal wet dispersion system with integrated ultrasound and optional temperature control. Its tubeless design allows very short measuring cycles and high chemical resistance, and even dense particles such as 3 mm stainless-steel beads are transported through the flow cuvette in water.
It is offered with a stainless-steel flow cuvette of 2 mm or 6 mm, with gasket materials FKM, EPDM or FFKM chosen for chemical resistance. A lowerable basin bottom allows fast draining and cleaning, even for viscous media. Fill, drain and additive containers with level sensors support automatic operation, and it can be combined with LIQIBACK or MULTISAMPLER/wet.
Specifications
Technical specifications
6 parameters
Range
- Particle size
- 0.1 - 3,500 µm
Sample
- Analysis volume
- 250 ml to 1,000 ml (variable)
Design
- Flow cuvette
- Stainless steel, 2 mm or 6 mm
- Gasket materials
- FKM, EPDM or FFKM
- Concept
- Tubeless design with lowerable basin bottom
Compatibility
- Sensor
- HELOS (QICPIC version announced)
Features
Key features
- 01
Wide range
0.1 to 3,500 µm.
- 02
Fully automatic
Pumping, filling and draining by software.
- 03
Chemical resistance
FKM, EPDM or FFKM gaskets.
- 04
Expandable
Works with LIQIBACK and MULTISAMPLER/wet.
