PreCiGen Hydrogen Gas Generator
PCI PreCiGen PEM hydrogen for GC-FID: up to 99.9999% purity from deionized water, on demand, with automatic shutdown — no high-pressure cylinders.
View product
Equipment guide
Laboratory gas generators and gas-handling systems in Jordan
A laboratory gas generator produces hydrogen, nitrogen or zero air on demand from electricity and air or water, replacing cylinder deliveries. Size it from the total flow of the instruments it feeds, add margin, and confirm the purity your detector requires.
In our catalog
Laboratory gas generators
40 products from PCI Analytics
PCI Analytics
PreCiGen 3-in-1 N2 / Zero Air / H2 Generator
One PreCiGen chassis for ultra-high-purity nitrogen, zero air, and hydrogen — built for GC-FID, cylinder-free, modular and space-saving.
View product
PCI Analytics
Nitrogen Concentrator / Sample Evaporator
PCI re Vap / EV-PLUS nitrogen blowdown: 15 s–10 h timer, ambient–90 °C, 50 positions (also 30/100/144), N2 60–100 PSI, 6.5 L bath, 600 × 520 × 400 mm, 25 kg.
View product
PCI Analytics
PreCiGen Nitrogen Generator for LC-MS (Membrane), NGLC-35A
Membrane-based nitrogen generator for LC-MS instruments that strips oxygen and moisture from compressed air to give a steady, phthalate-free nitrogen supply.
View product
PCI Analytics
PreCiGen Nitrogen Generator for LC-MS with HMI, NGLC-32A
Plug-and-play membrane nitrogen generator for LC-MS with a built-in silent oil-free compressor, an air storage tank and an HMI.
View product
PCI Analytics
PreCiGen Gas Generator S-Series
Microprocessor-controlled PreCiGen generator series for continuous ultra-high-purity gas, with real-time monitoring of flow and pressure.
View product
PCI Analytics

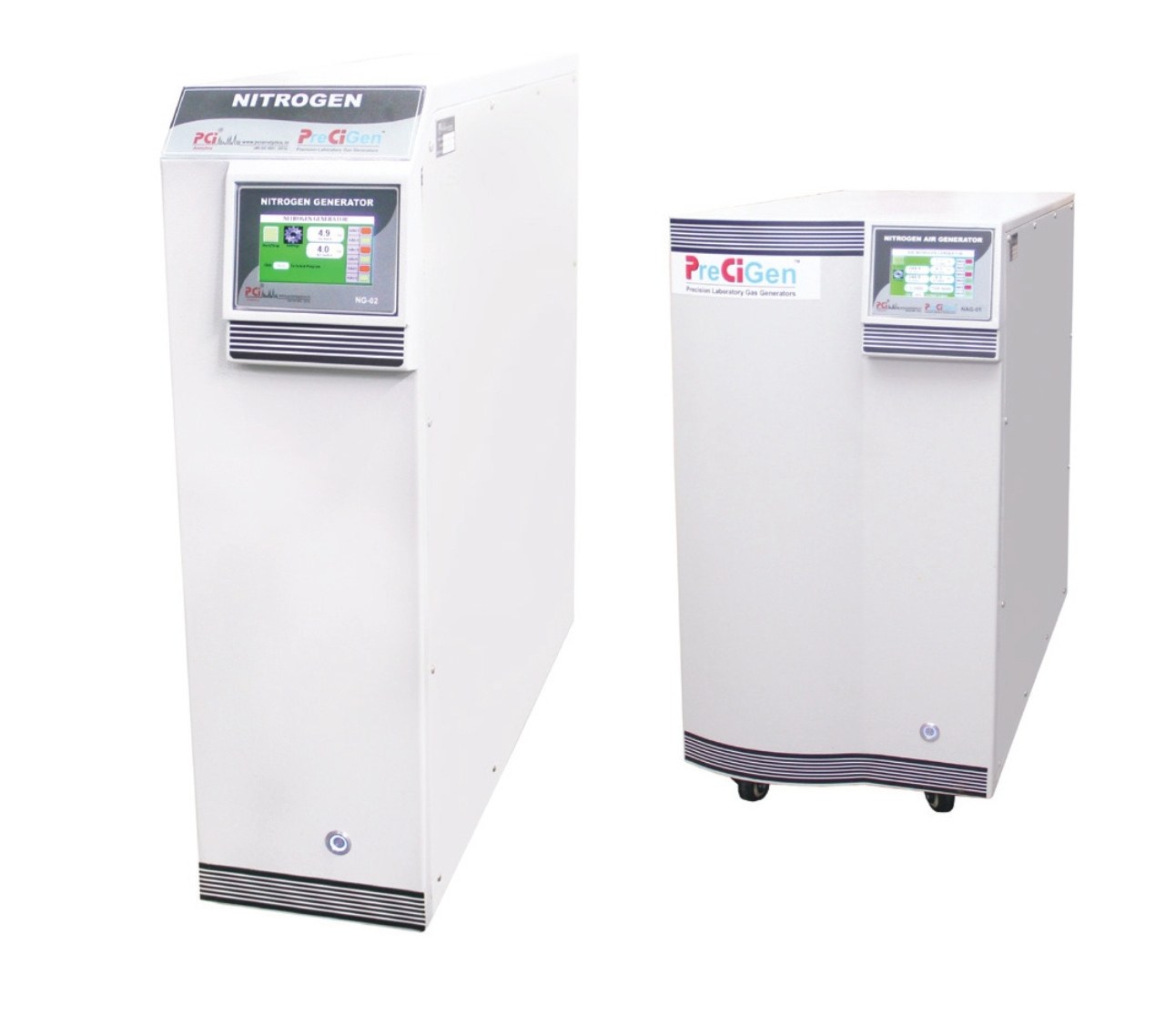

PreCiGen Nitrogen Generator for GC (NG-02 Series)
PSA nitrogen generator for gas chromatography that uses a carbon molecular sieve to remove trace oxygen and moisture for stable baselines and longer column life.
View product
PCI Analytics

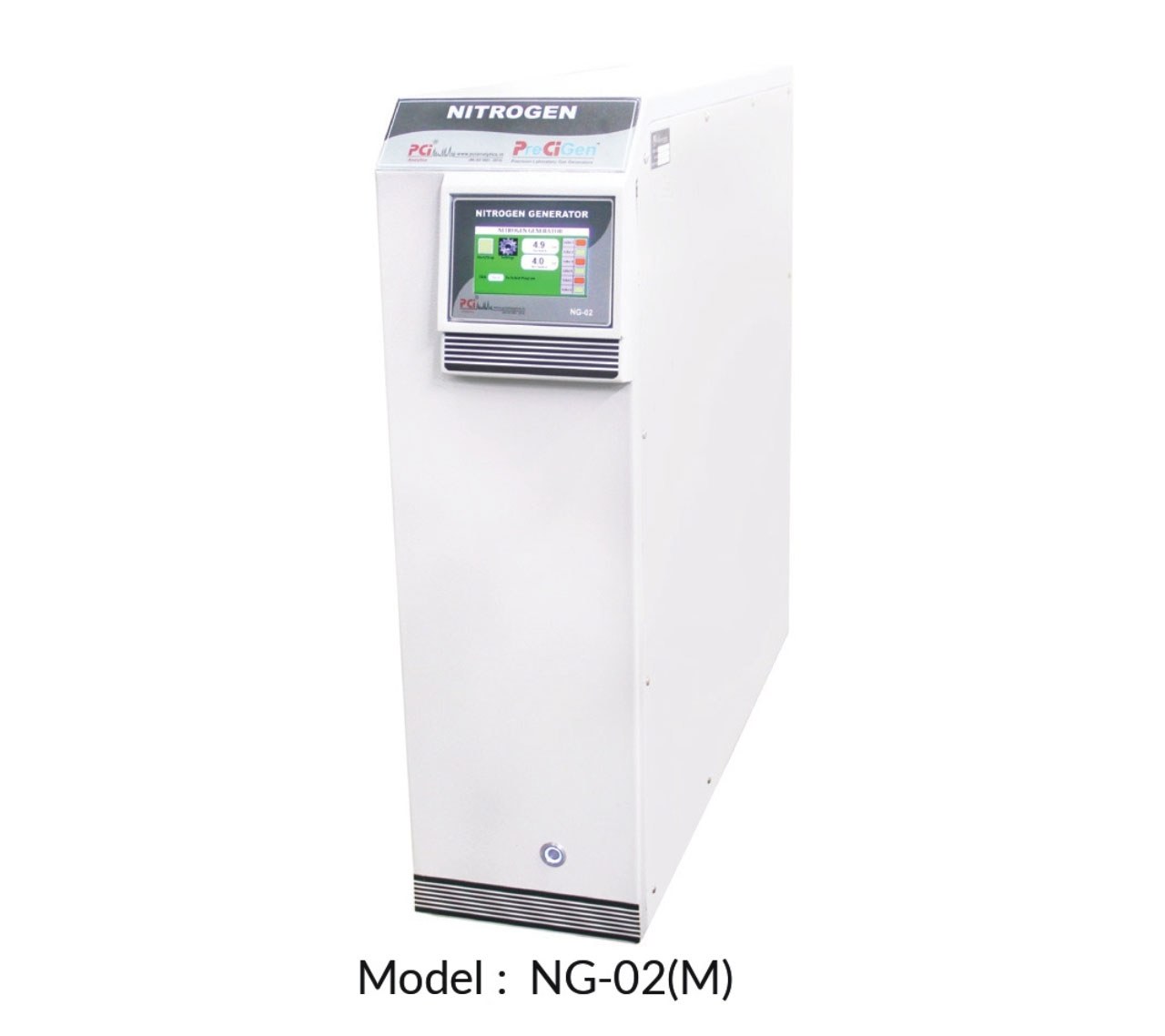

PCI Nitrogen Gas Generator NG-02(M)
Compact plug-and-play nitrogen generator with an inbuilt oil-free compressor, 99.99% purity and 8-10 bar pressure for GC, GC-MS, LC-MS/MS, CAD and ELSD.
View product
PCI Analytics

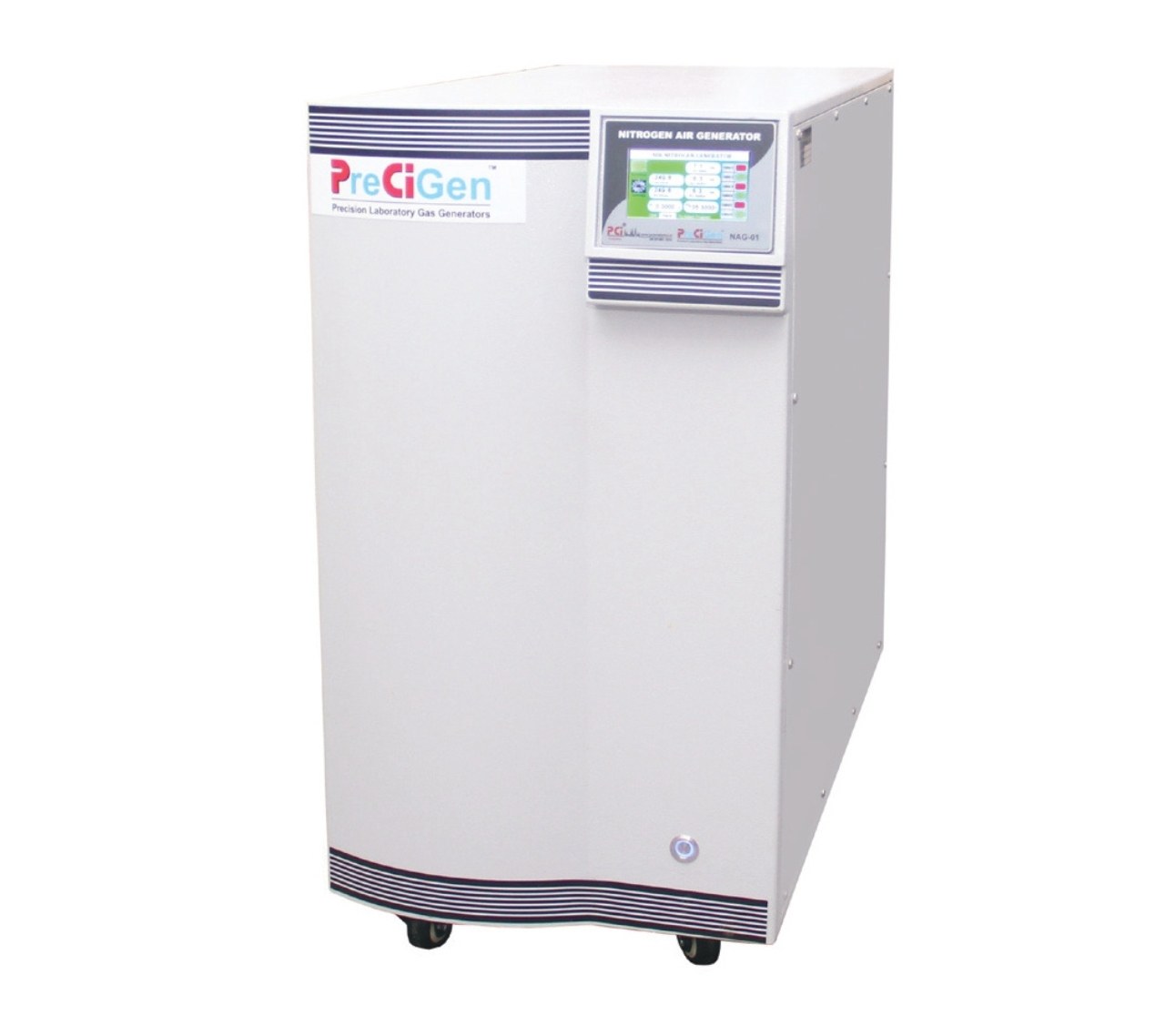

PreCiGen Nitrogen Generator for LC-MS / LC-MS-MS
High-flow PreCiGen nitrogen generator for LC-MS and LC-MS/MS, supplying curtain, source and exhaust gas as pure, phthalate-free nitrogen.
View product
PCI Analytics

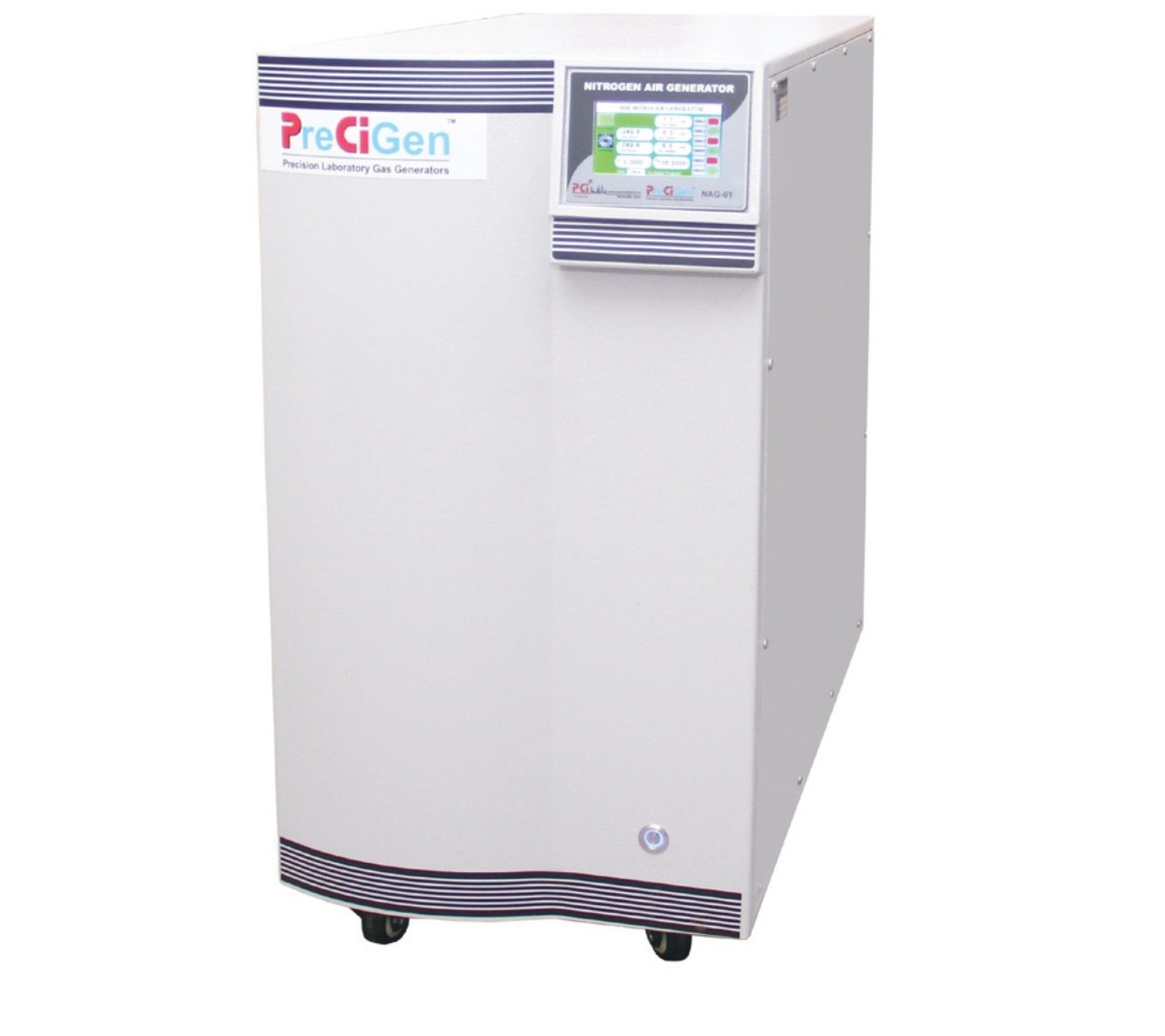

PreCiGen Nitrogen Generator for Nitrogen Concentrator / Turbo Evaporator
Dedicated PreCiGen nitrogen generator that supplies the continuous clean, dry nitrogen flow needed by nitrogen concentrators and turbo evaporators.
View product
PCI Analytics

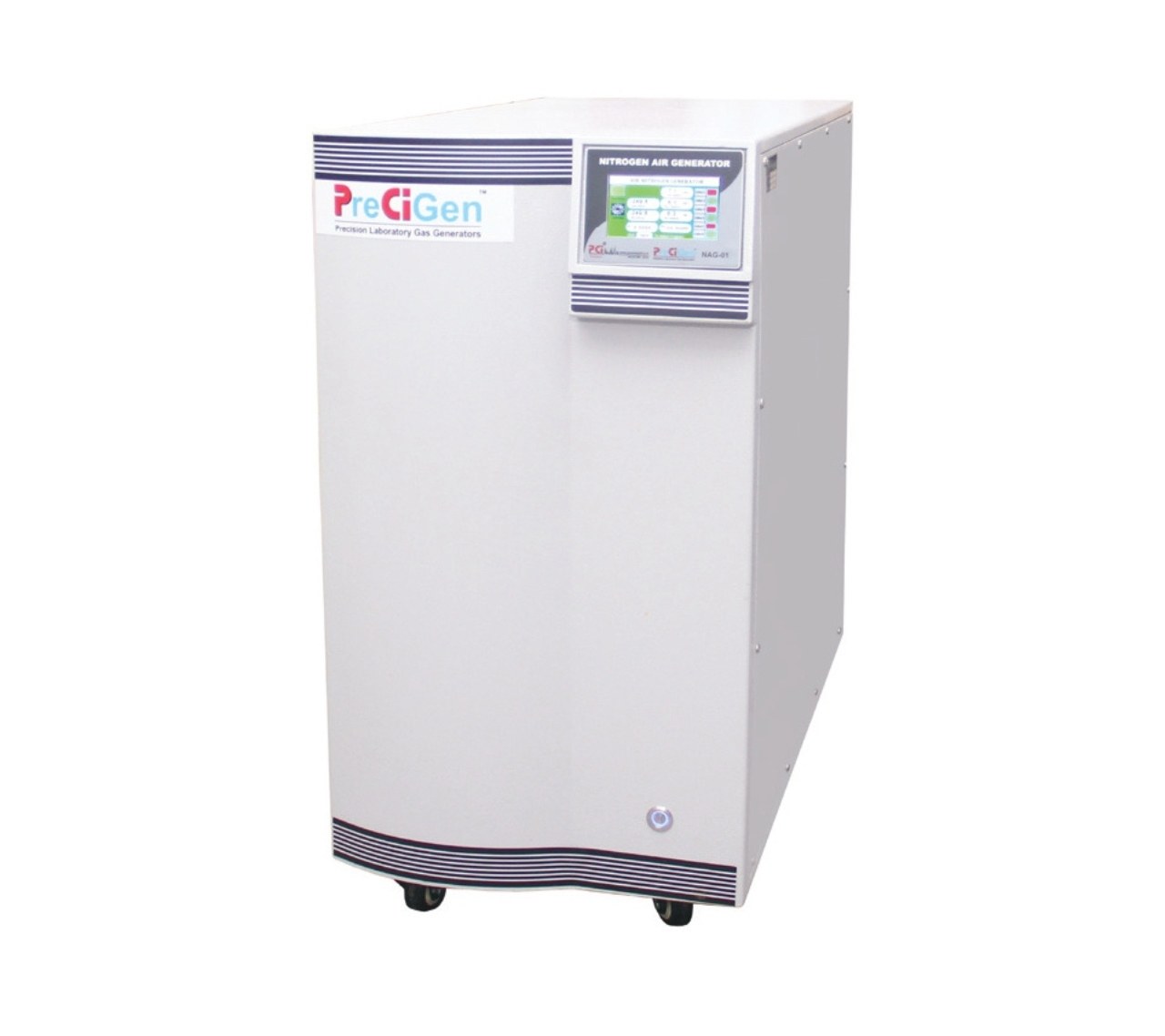

PreCiGen Nitrogen-Air Combination Generator for GC
Two-in-one PSA generator that supplies ultra-high-purity nitrogen carrier gas and hydrocarbon-free zero air for FID from one compact unit and one compressor.
View product
PCI Analytics

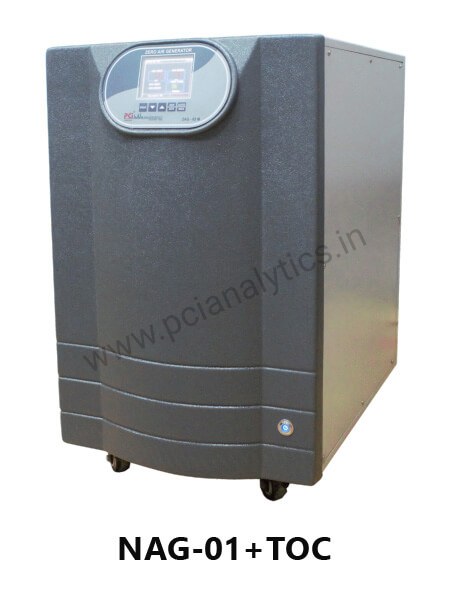

PreCiGen Nitrogen-Air Combination (Triple) Generator for GC and TOC Analyzer
PSA generator giving GC-grade nitrogen plus zero air for GC and zero air for TOC analyzers, from one cabinet at 500 to 4000 ml/min at 5 kg/cm2.
View product
How to choose: Laboratory gas generators
- 01
Gas and purity
Hydrogen for FID and carrier, nitrogen for makeup and evaporation, zero air for FID. Check the purity level your method requires.
- 02
Flow and sizing
Add up the flow of every instrument on the line and keep headroom. A single GC-FID typically needs tens of mL/min of hydrogen and a few hundred mL/min of air.
- 03
Safety
Low-volume hydrogen generators store minimal gas, which is inherently safer than a hydrogen cylinder. Add leak detection for the room.
- 04
Gas distribution
Regulators, manifolds, changeover panels and stainless lines keep pressure stable and prevent contamination.
- 05
Running cost
Compare generator running cost (power, water, consumables) against cylinder rental, delivery and handling over several years.
Typical applications
- GC, GC-MS and LC-MS gas supply
- AAS and ICP gas supply and distribution
- Solvent evaporation with nitrogen
- Laboratory air supply for analysers
- Gas-leak and toxic-gas monitoring
Manufacturers we supply for this equipment
Each range is supplied with installation, operator training and local service.
Frequently asked questions
Is a hydrogen generator safer than a hydrogen cylinder?
Generally yes. A generator holds only a small volume of hydrogen at low pressure and shuts off on a leak, while a cylinder stores a large volume at high pressure. Good ventilation and leak detection are still required.
Can hydrogen replace helium as the GC carrier gas?
Often, yes, with method re-validation. Hydrogen gives faster separations at lower cost, and on-site generation removes helium supply risk.
Does Al-Shaker install gas lines and generators?
Yes. Gas generators, purification, regulators, changeover panels and distribution are supplied, installed and supported as part of the laboratory package.
Talk to the technical team
Tell us the application. We will specify the system.
Share the workflow, capacity, and compliance constraints. We respond with a recommended configuration, not a generic catalogue list.
